MT ferrule / PIN pin / MPO connector
Core Component Manufacturer
*Product complies with IEC 61754-7 and TIA-604-5 standards
*Insertion loss ≤ 0.35dB,, premium products as low as 0.25dB
Core Products
Company Profile

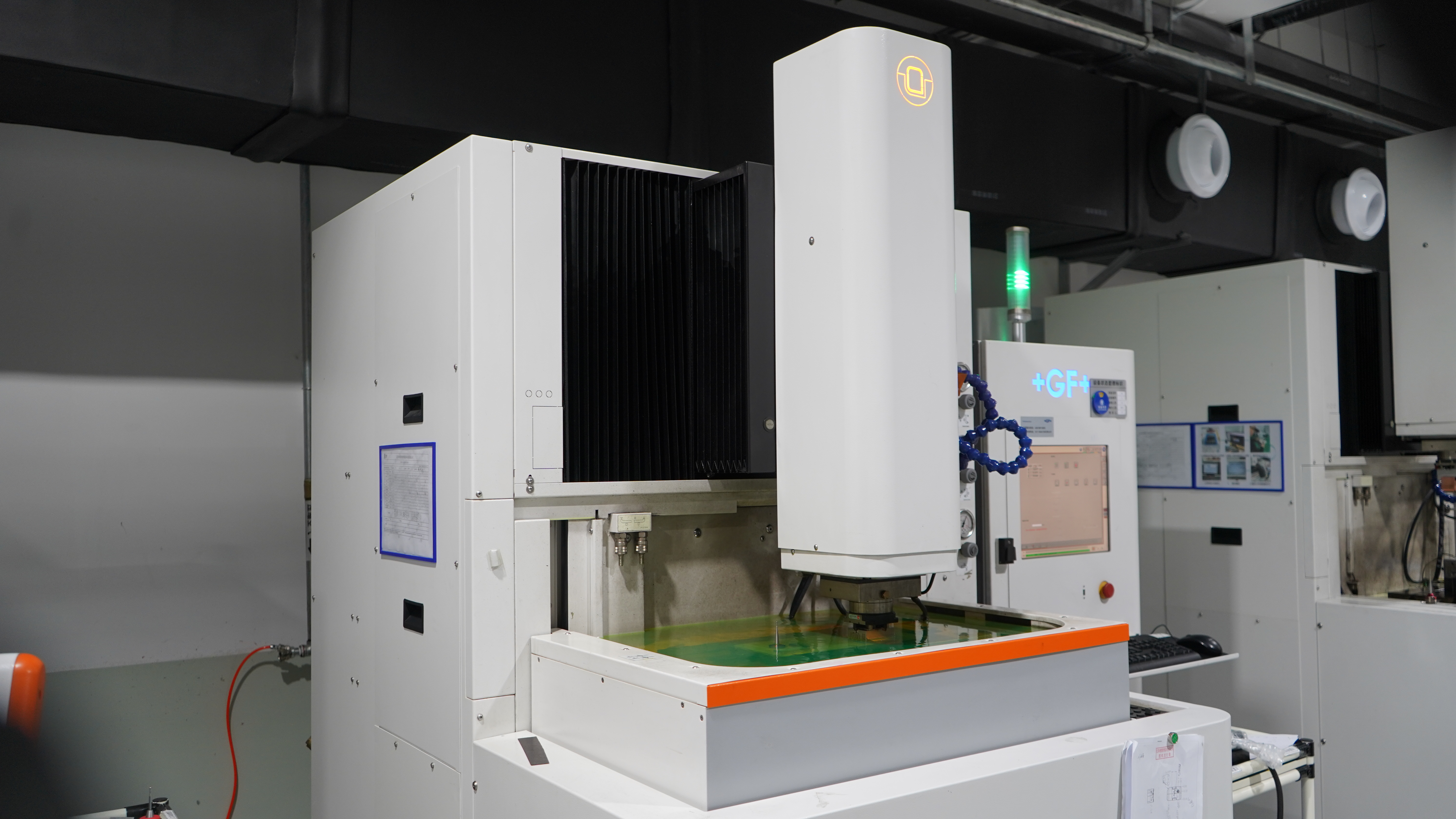

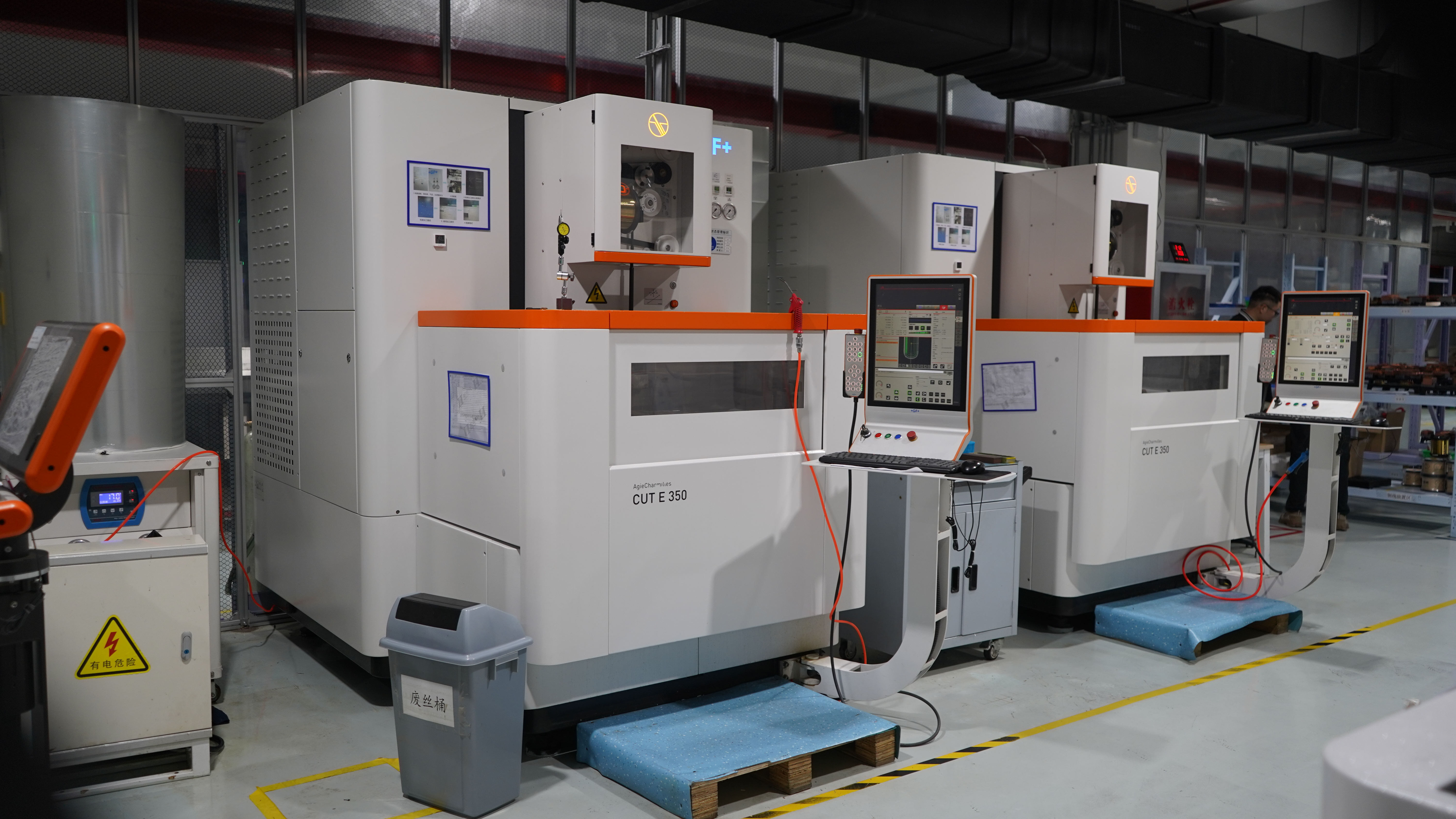

Jiangsu KRS Precision Mold Technology Co., Ltd. was established in 2021 11. As a wholly-owned subsidiary of Hardwin Group, it is based in Suzhou Industrial Park and integrates R&D, design, machining, injection molding, and assembly to specialize in manufacturing ultra-precision, medium-to-high difficulty, and complex molds and products.
We prioritize the customer perspective to deliver comprehensive, one-stop services tailored to real-world needs. In addition to supplying high-quality MT ferrules and MPO components, we offer rapid customization for non-standard MT products. Our product line fully covers single-mode standard loss, low loss, and ultra-low loss MT ferrules and matching components in 12, 16, 24, 32, and 36 fiber configurations. All MPO products are manufactured in strict compliance with international standards such as GR-1435 and IEC, and are widely sold in both domestic and global markets.
Application Areas

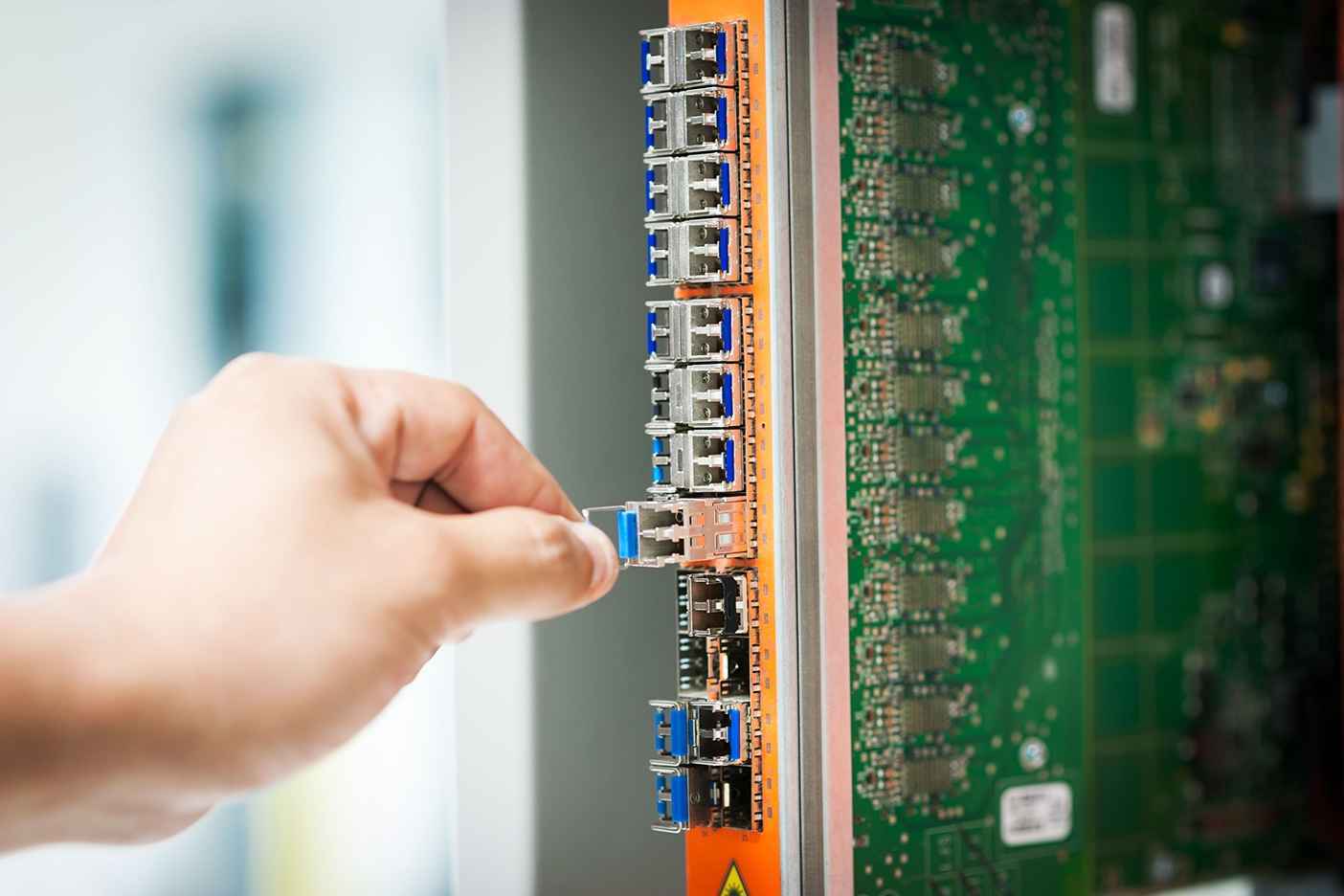

Cloud Computing / 5G/6G Telecommunications Networks
Industrial / Emerging Sectors
Aerospace / Defense / Military / Automotive
AI computing power

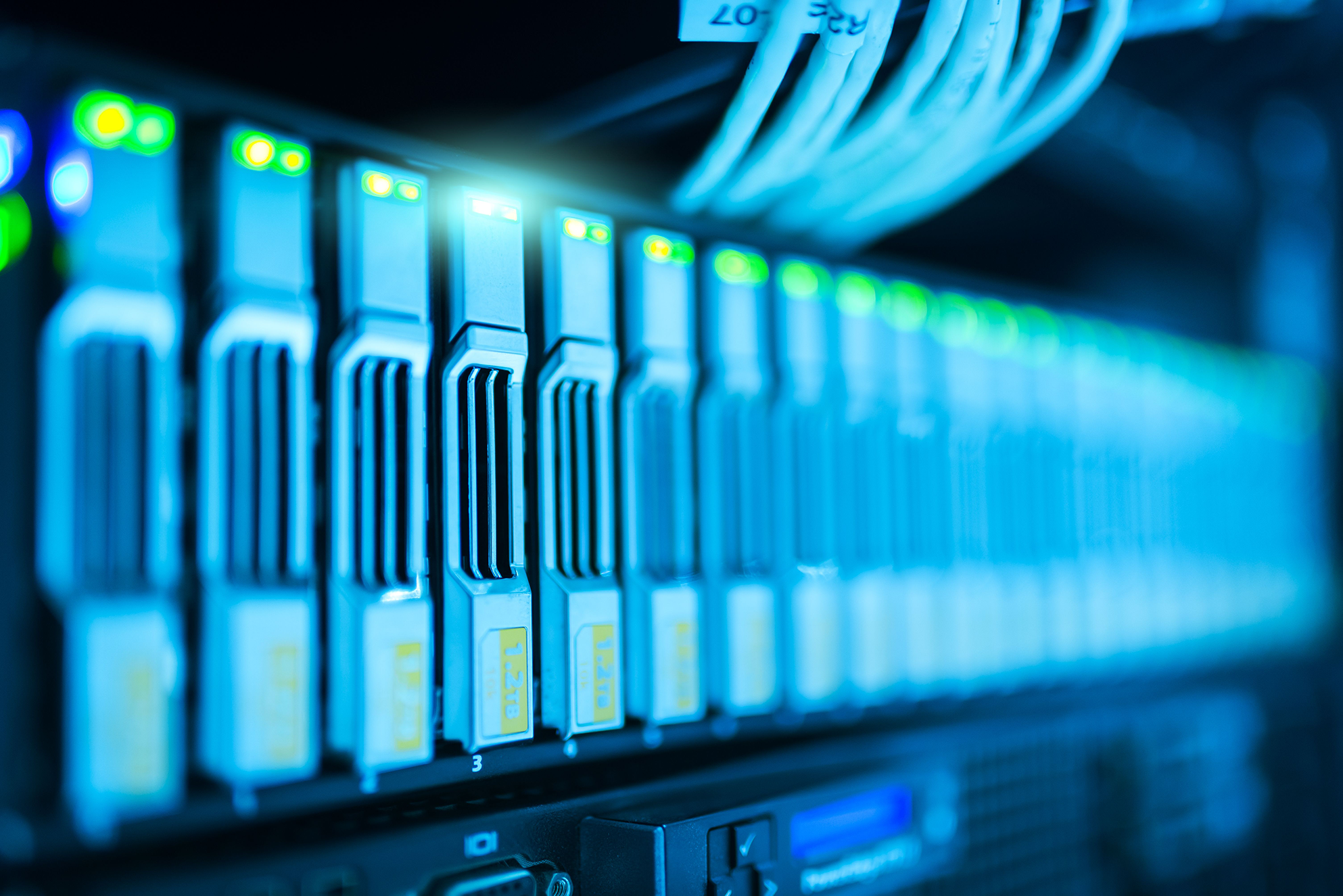

Data Center

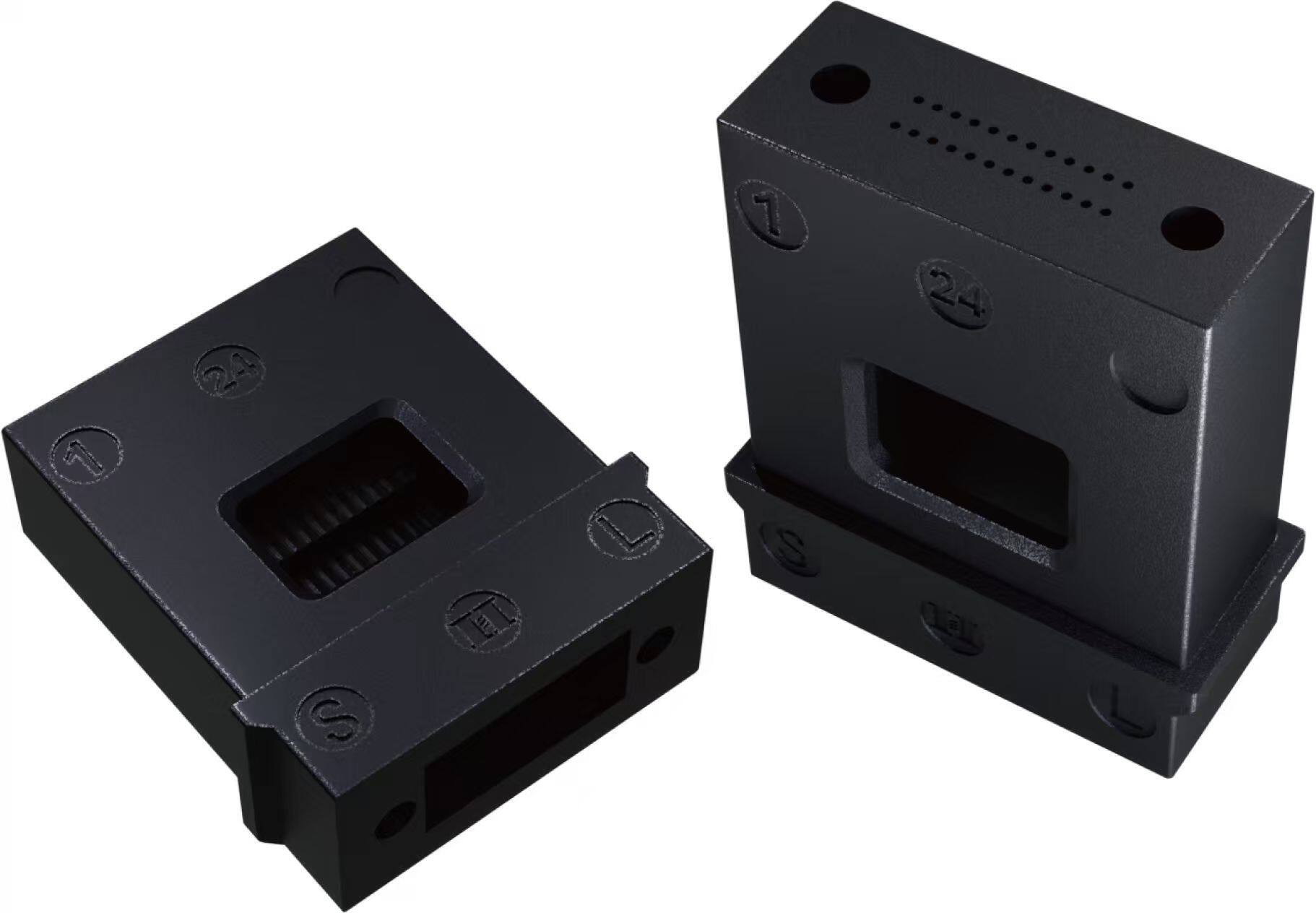

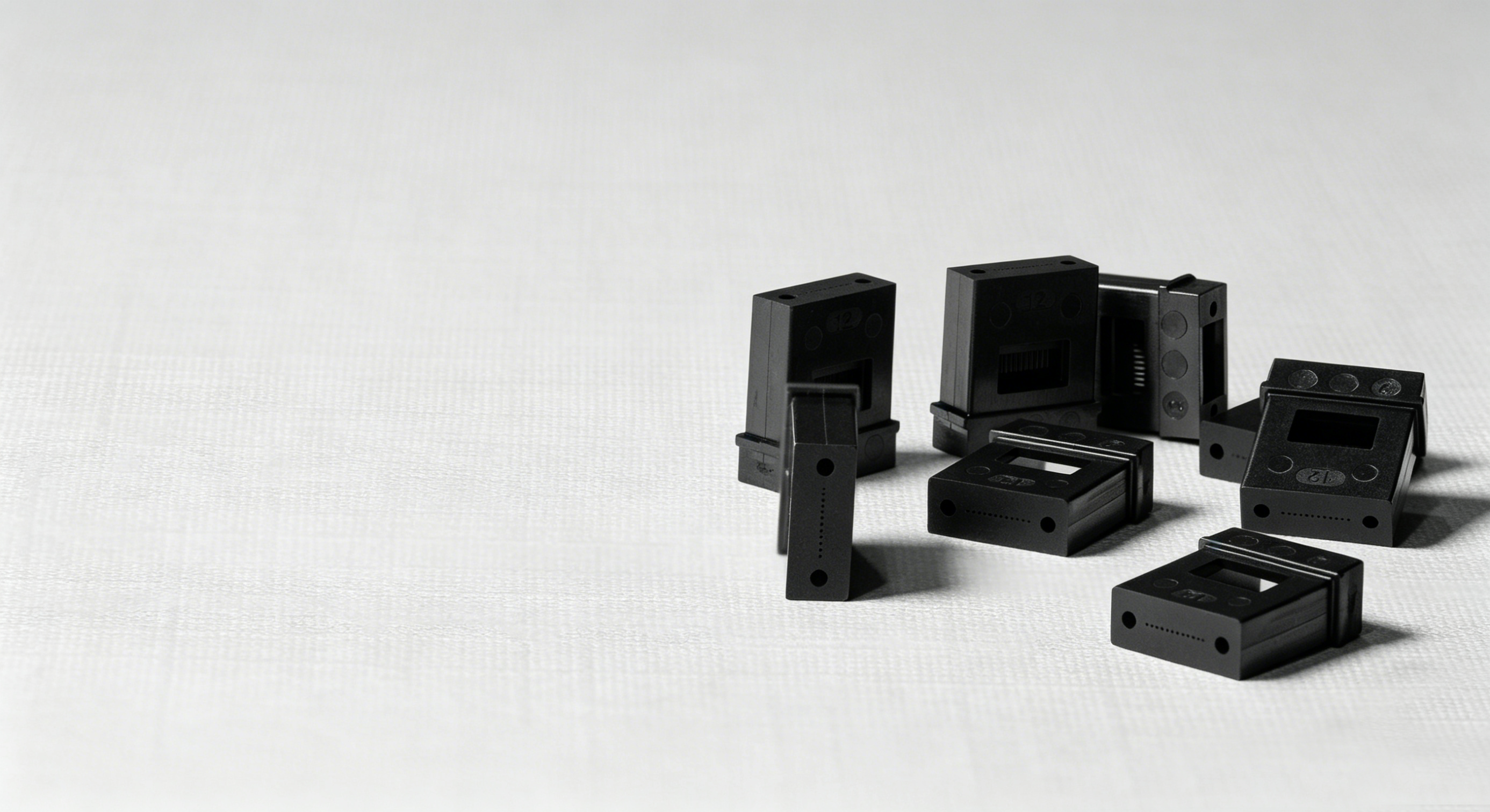

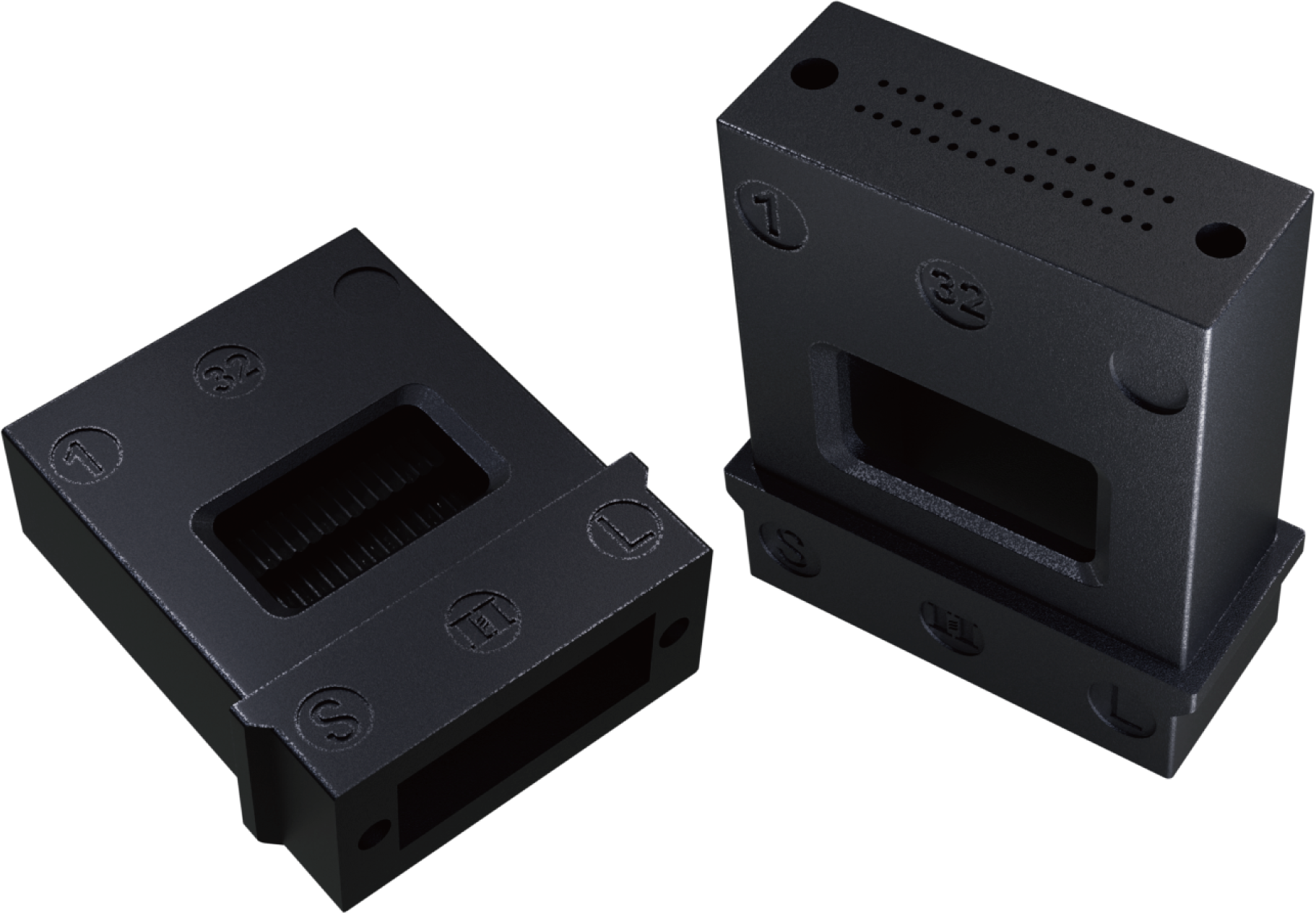

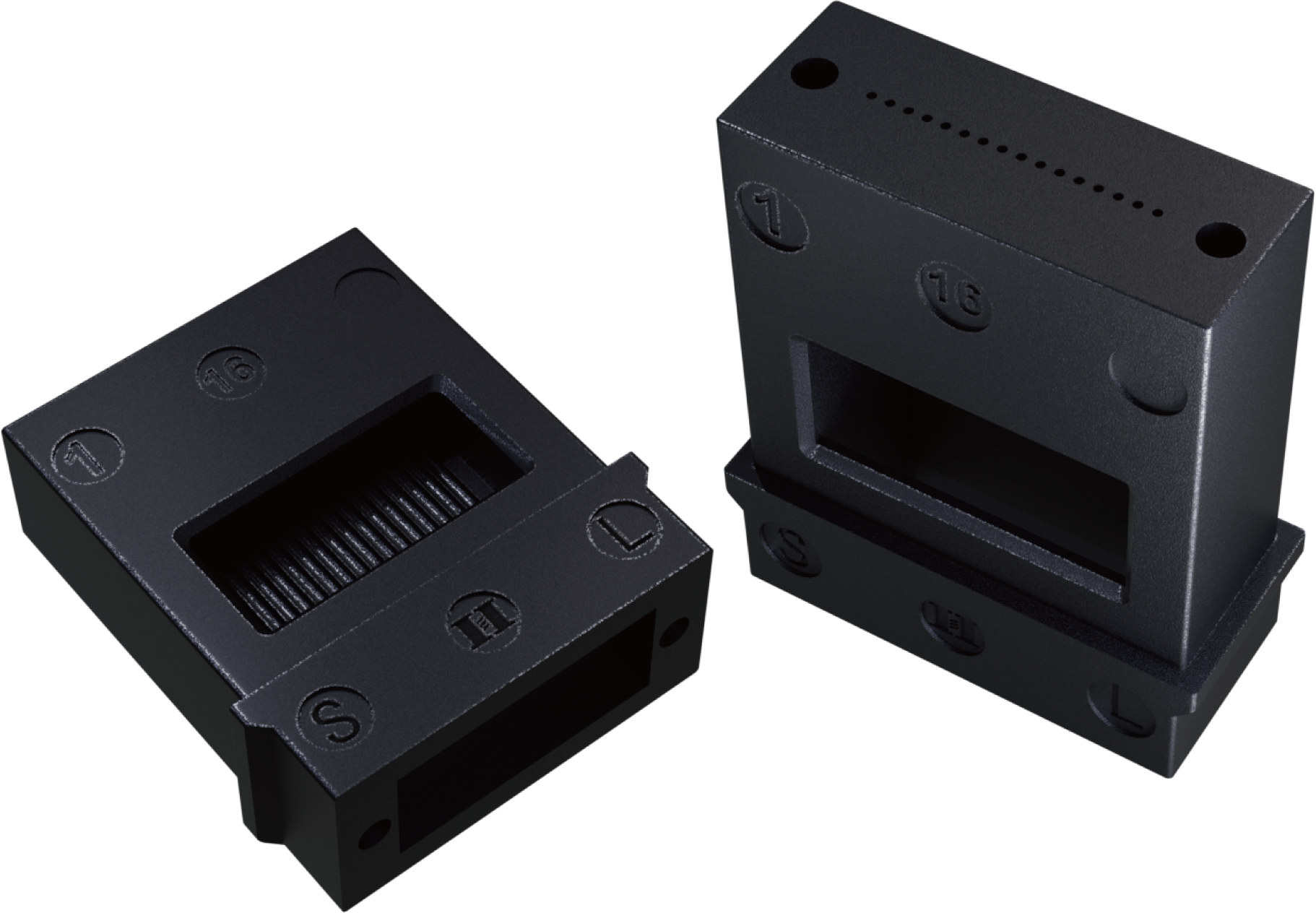

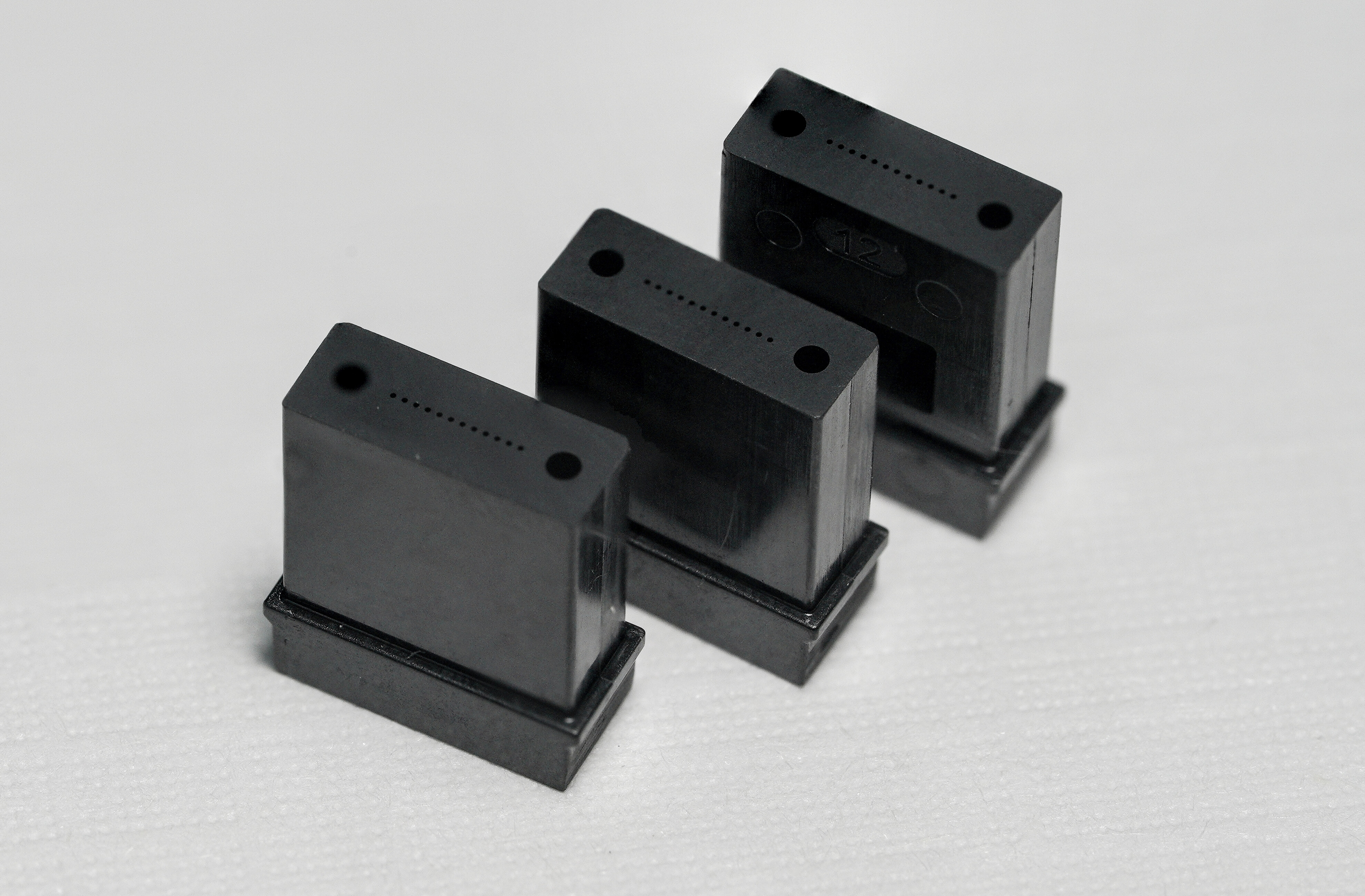

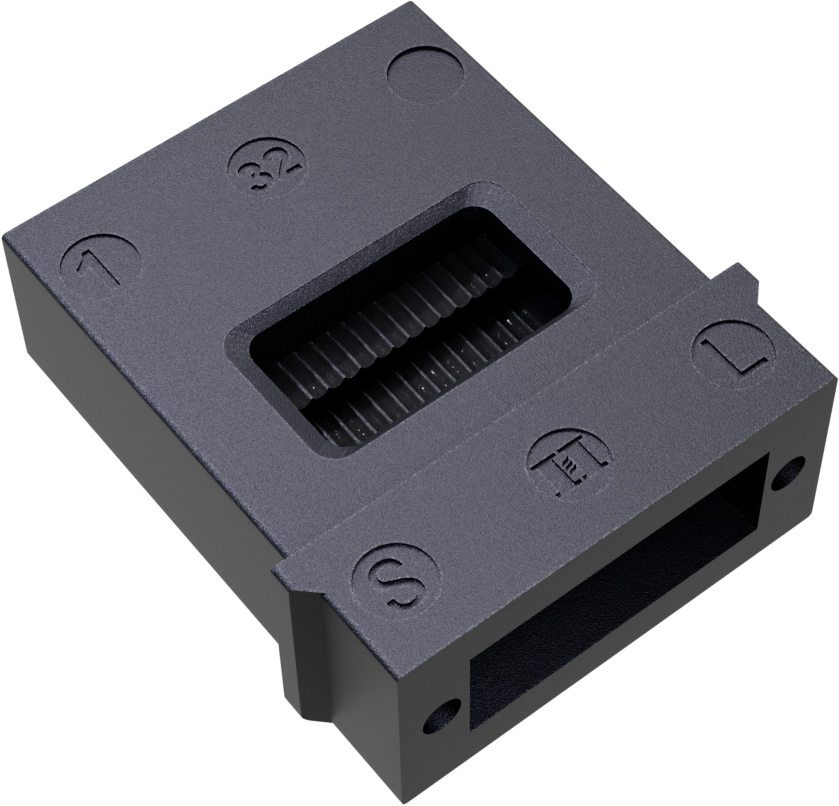

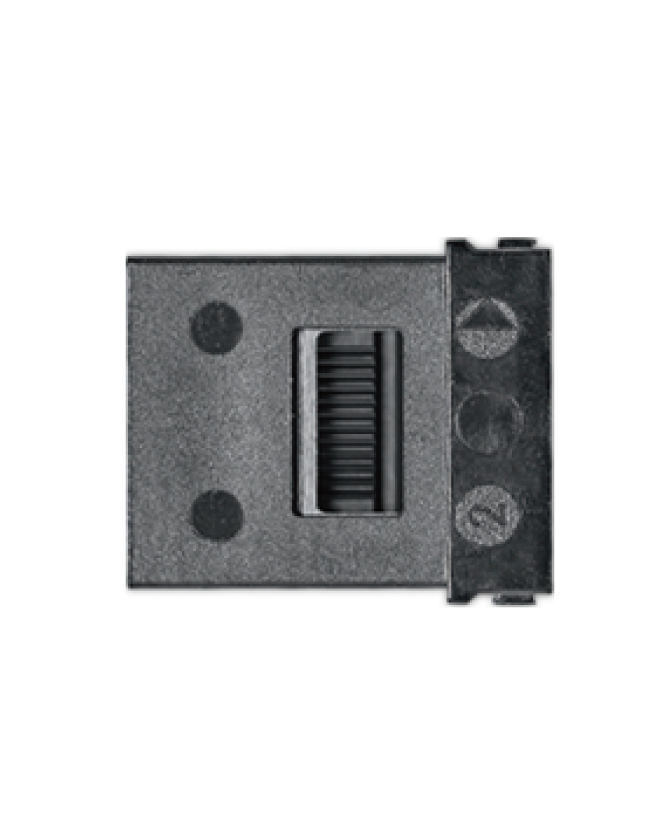

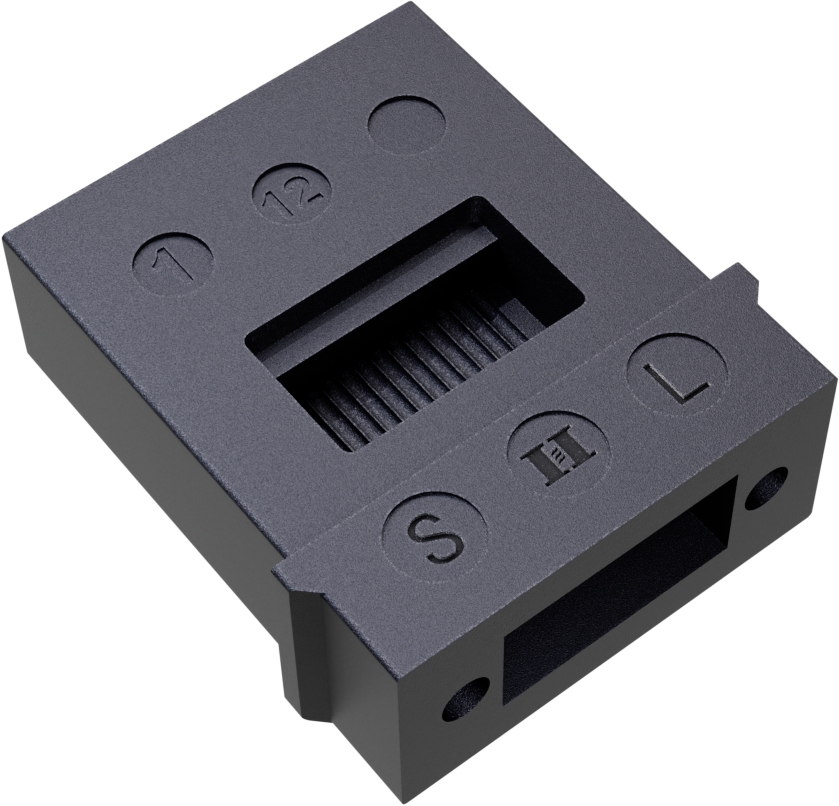

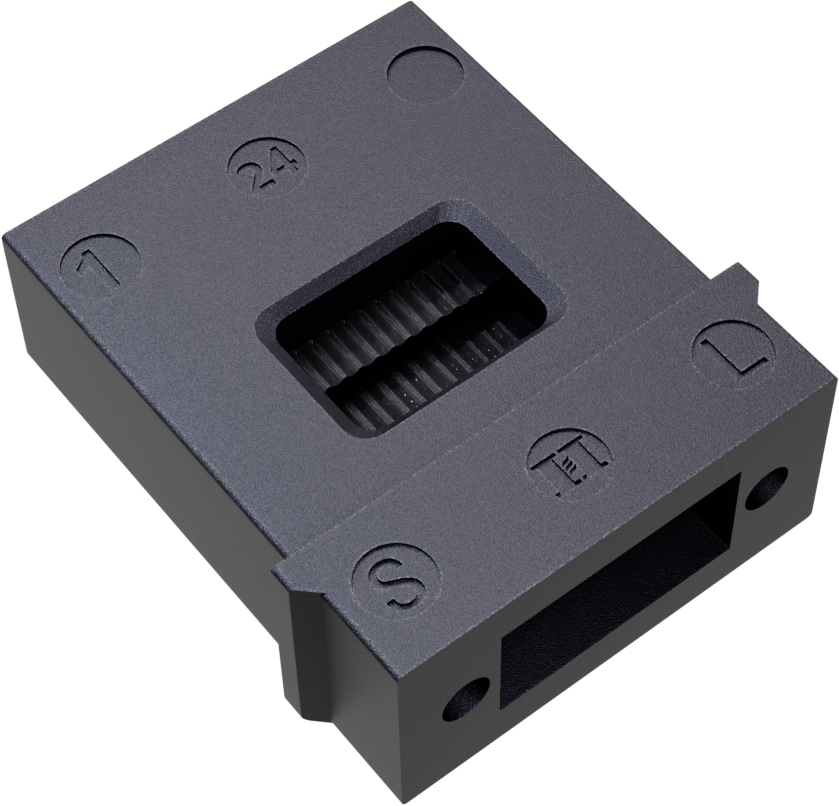

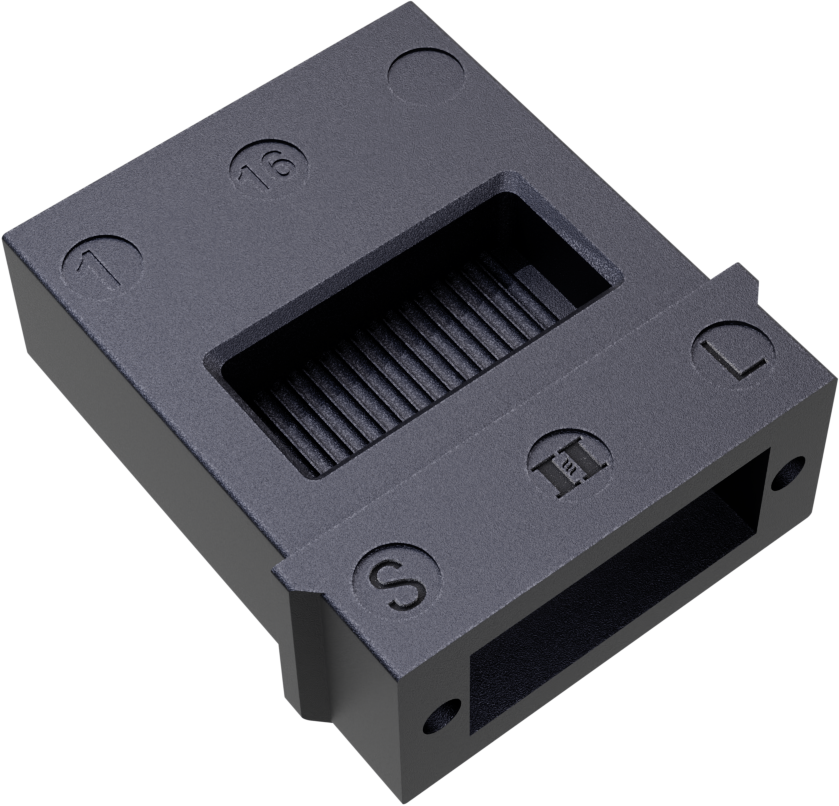

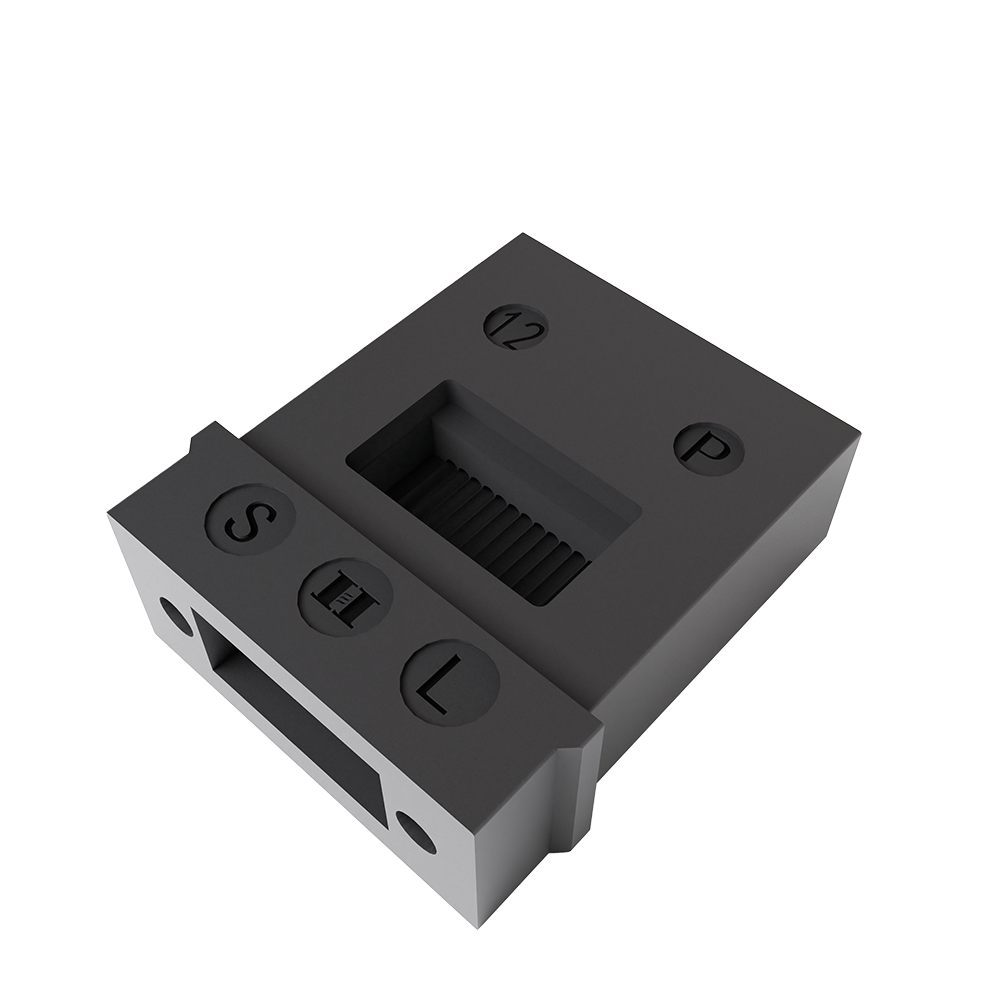

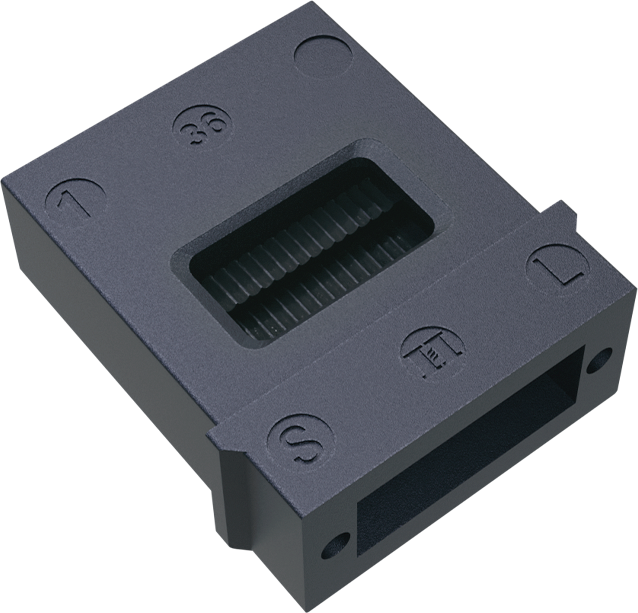

MT ferrule
Our MT ferrules are built with high-performance materials, proprietary molds, and precision manufacturing to ensure insertion loss stays below 0.25dB. Compliant with international standards and rigorously tested for reliability, they feature advanced designs like elliptical guide pins and field-configurable plugs—ensuring long-term stability and easy maintenance in high-speed networks. Our complete product line covers single-mode MT ferrules and components in 12-pin, 16-pin, 24-pin, 32-pin, and 36-pin configurations, offering standard, low-loss, and ultra-low-loss options. All MPO products are manufactured in strict accordance with GR-1435, IEC, and other global standards, and are widely sold across domestic and international markets.
Specifications
| Core count specification | Single-mode ultra-low loss | Single-mode low-loss | Single-mode mark-to-market loss |
|---|---|---|---|
| 12F / 16F / 24F / 32F / 36F | ≤ 0.25 dB | ≤ 0.35 dB | ≤ 0.7 dB |

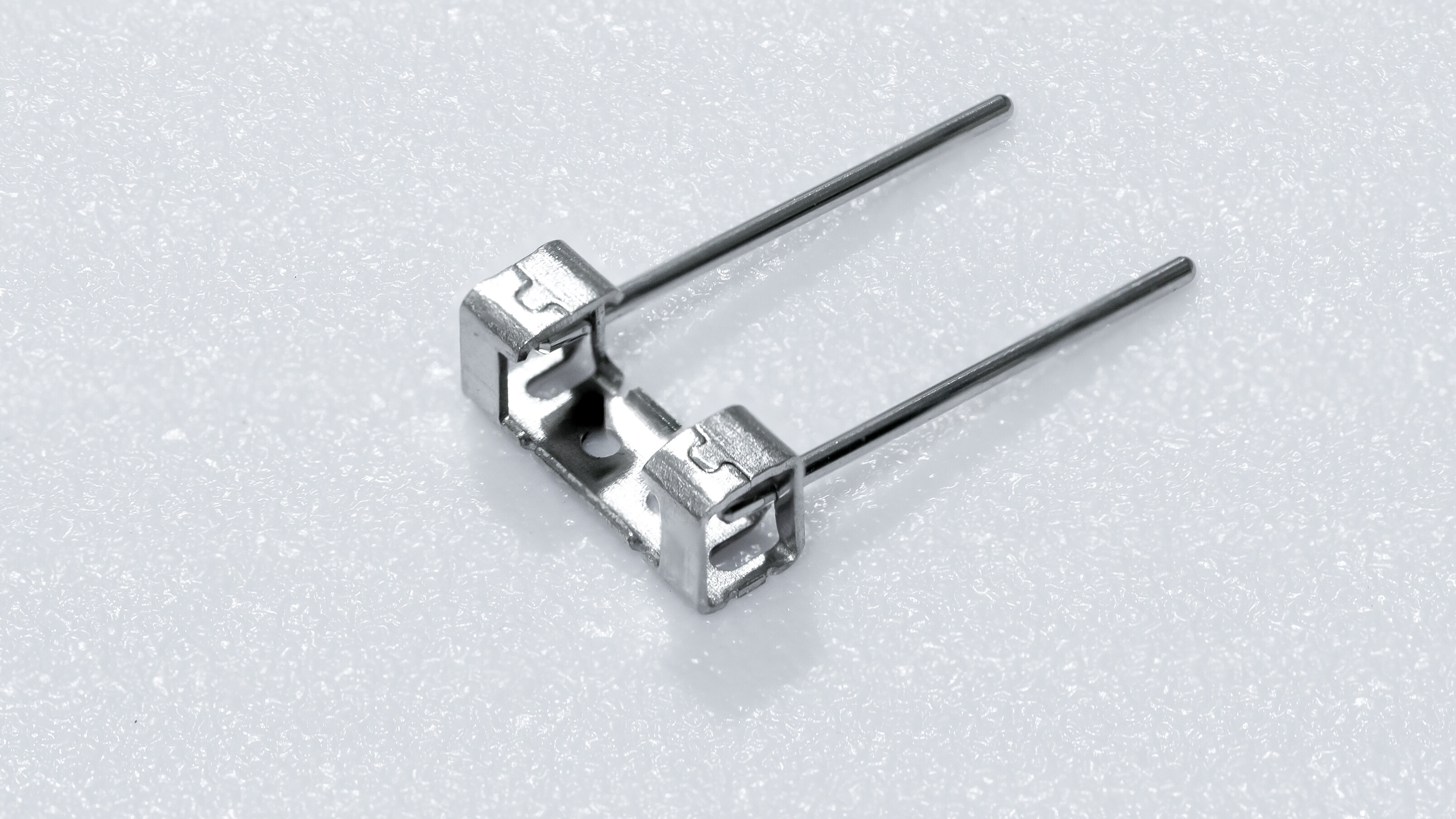

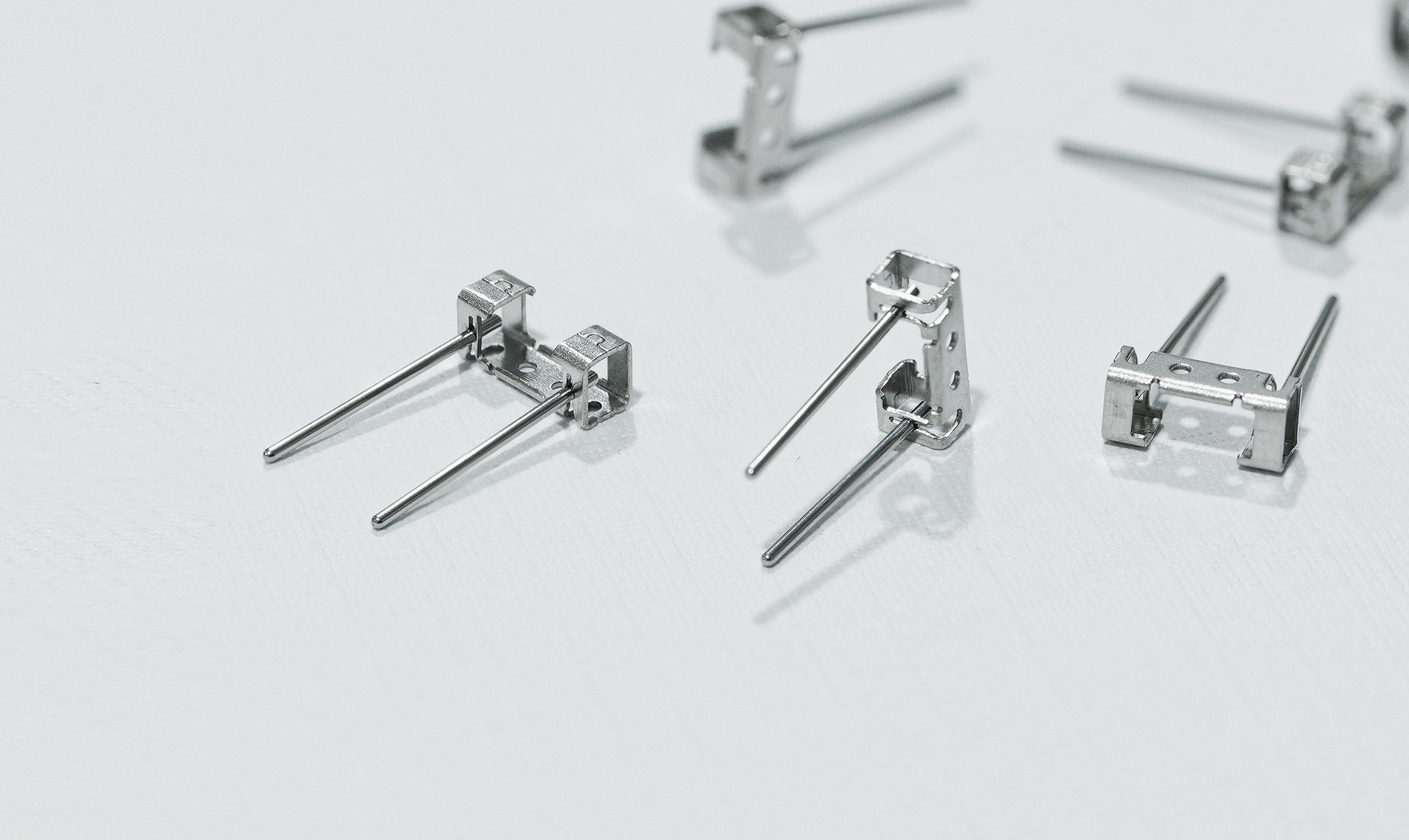

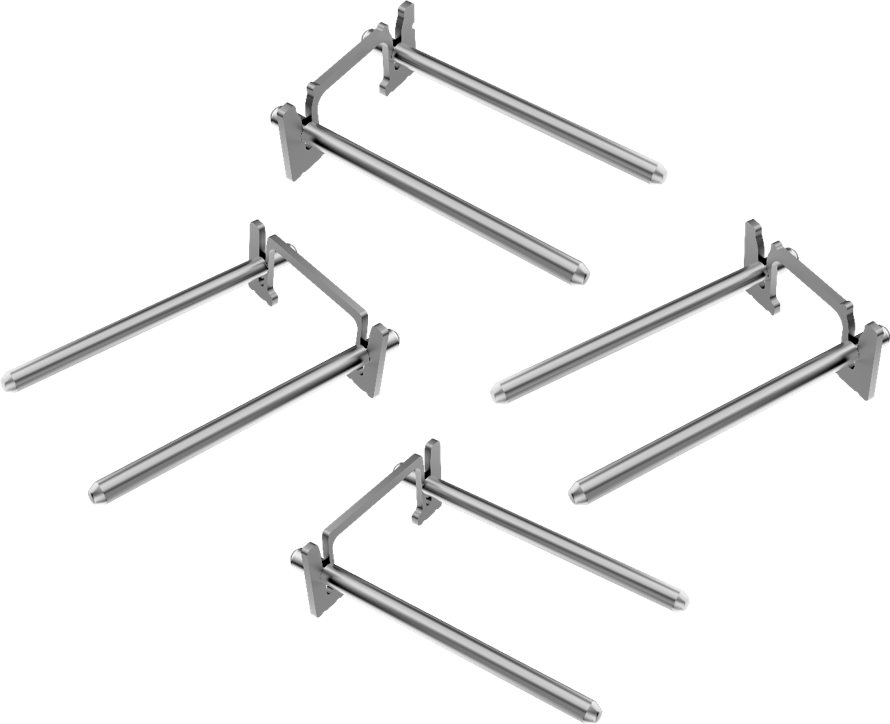

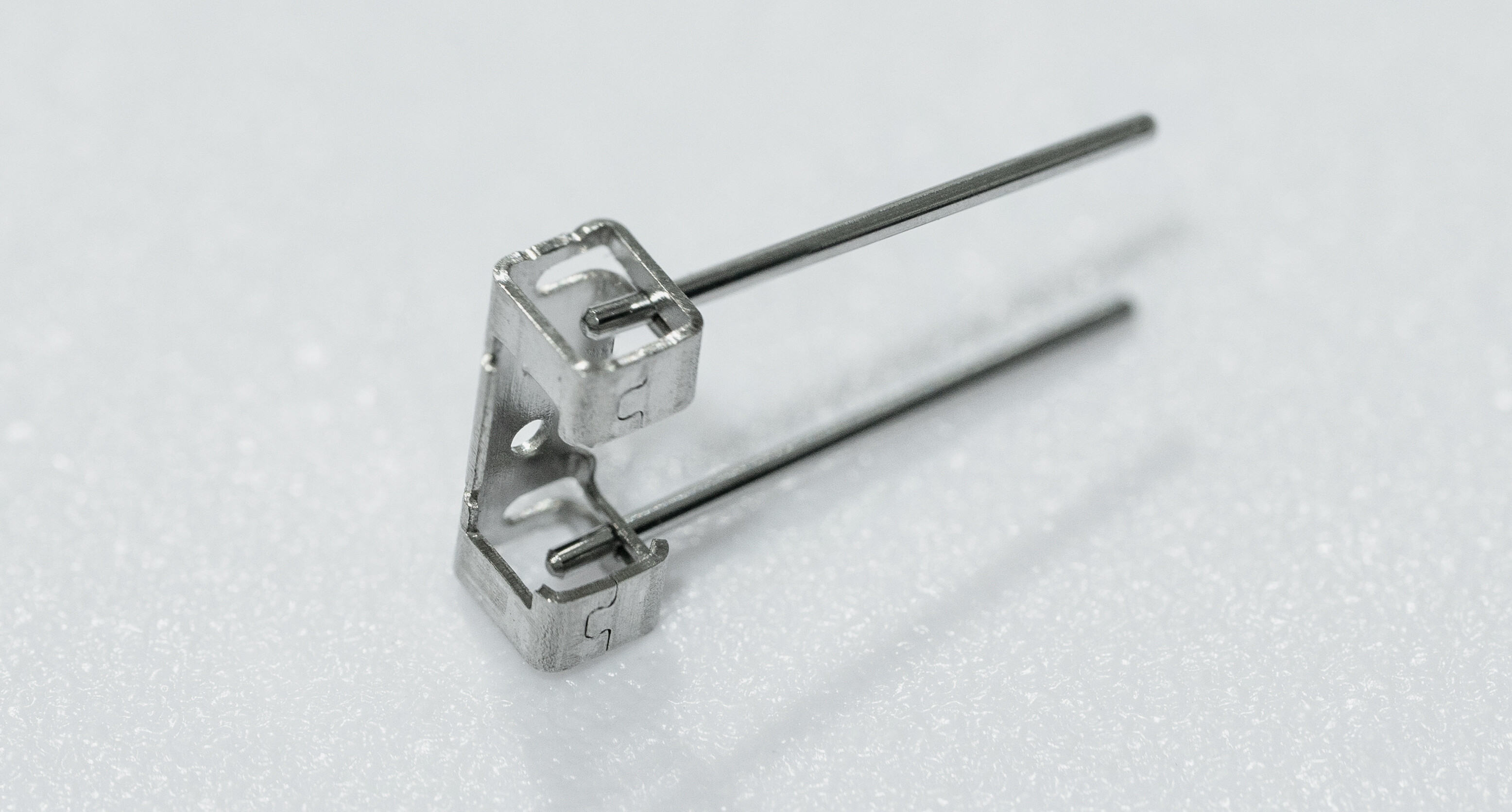

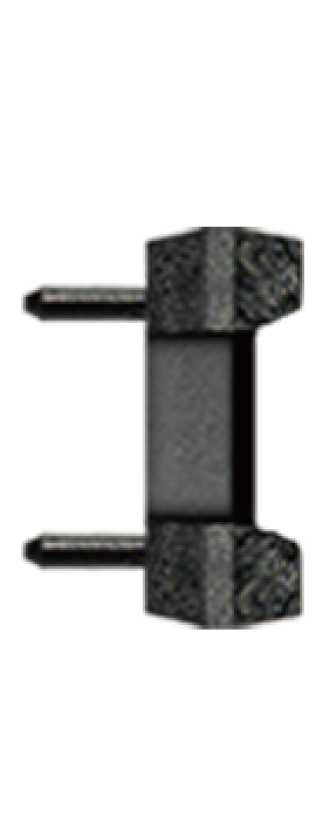

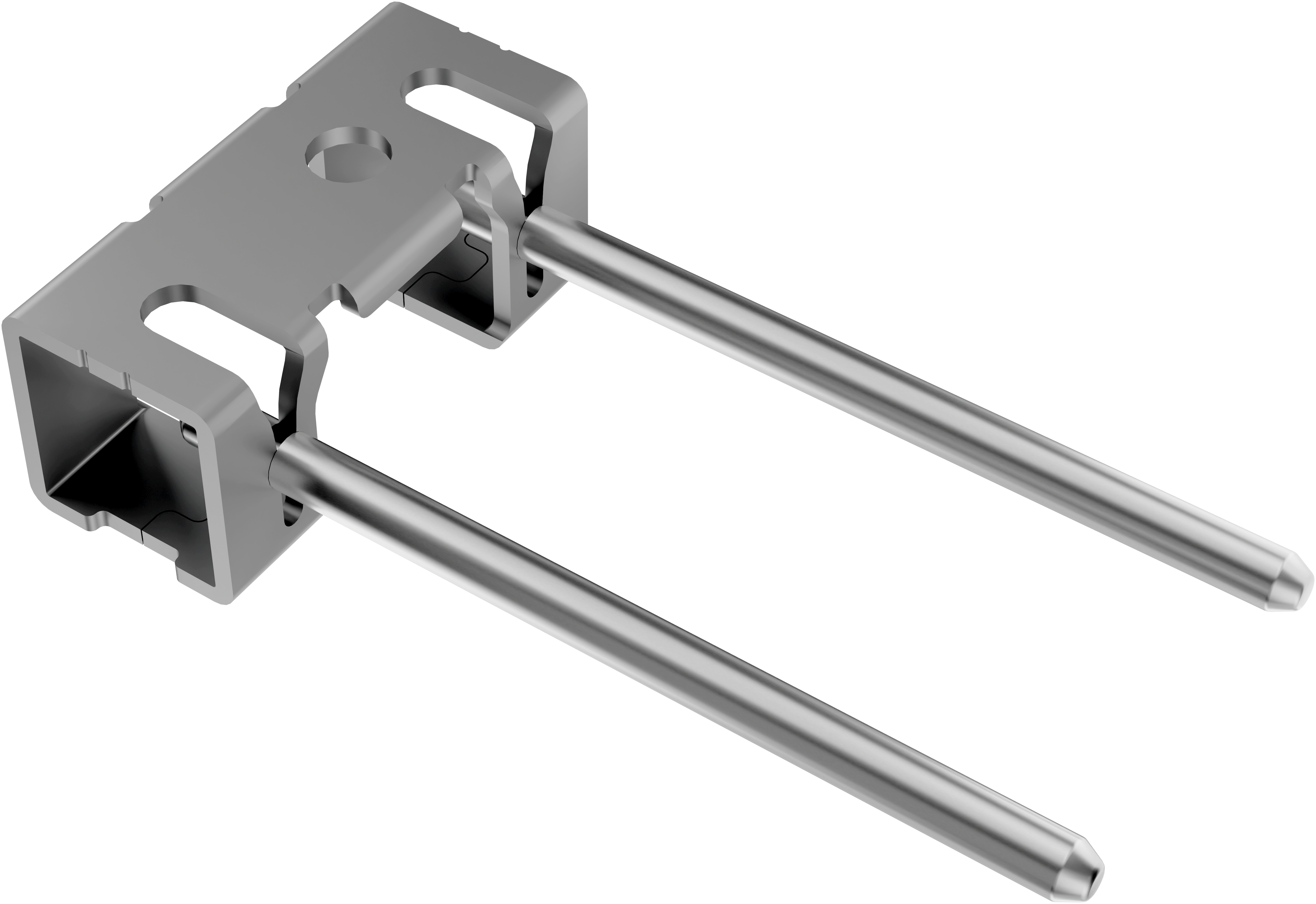

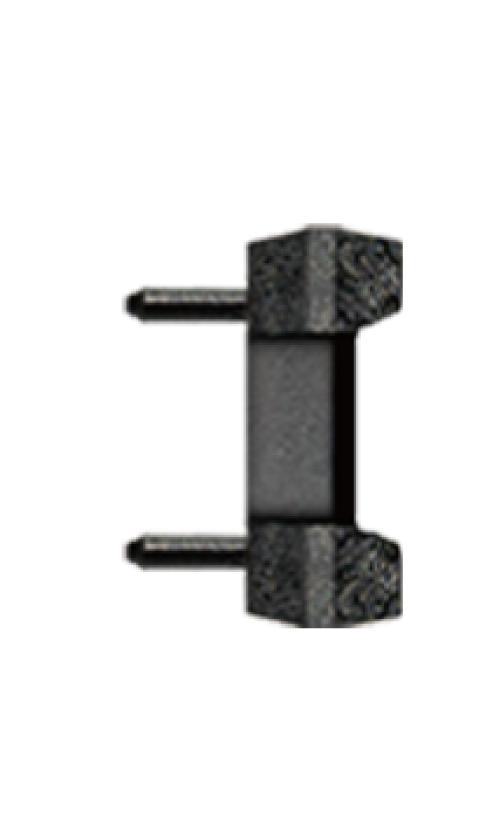

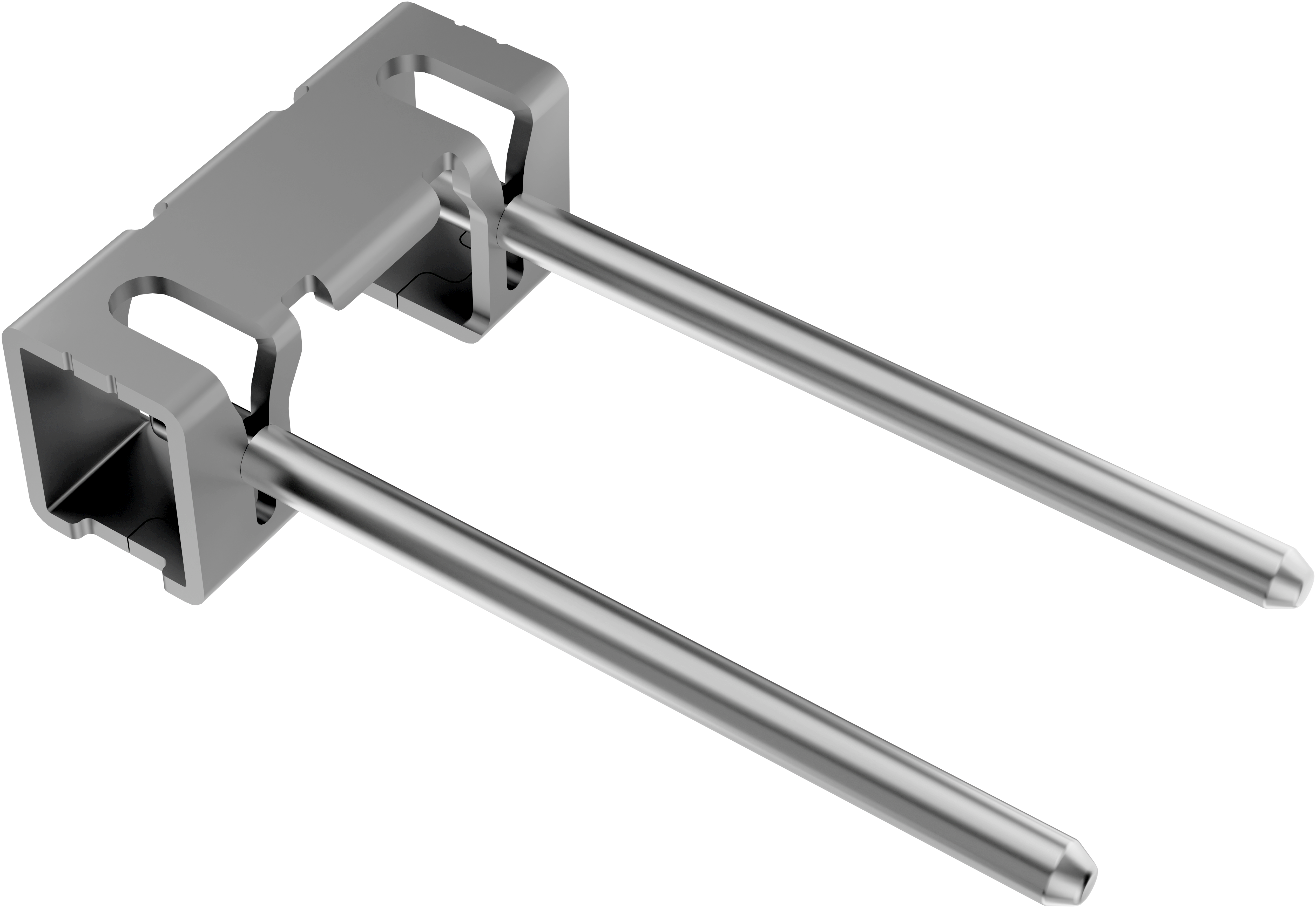

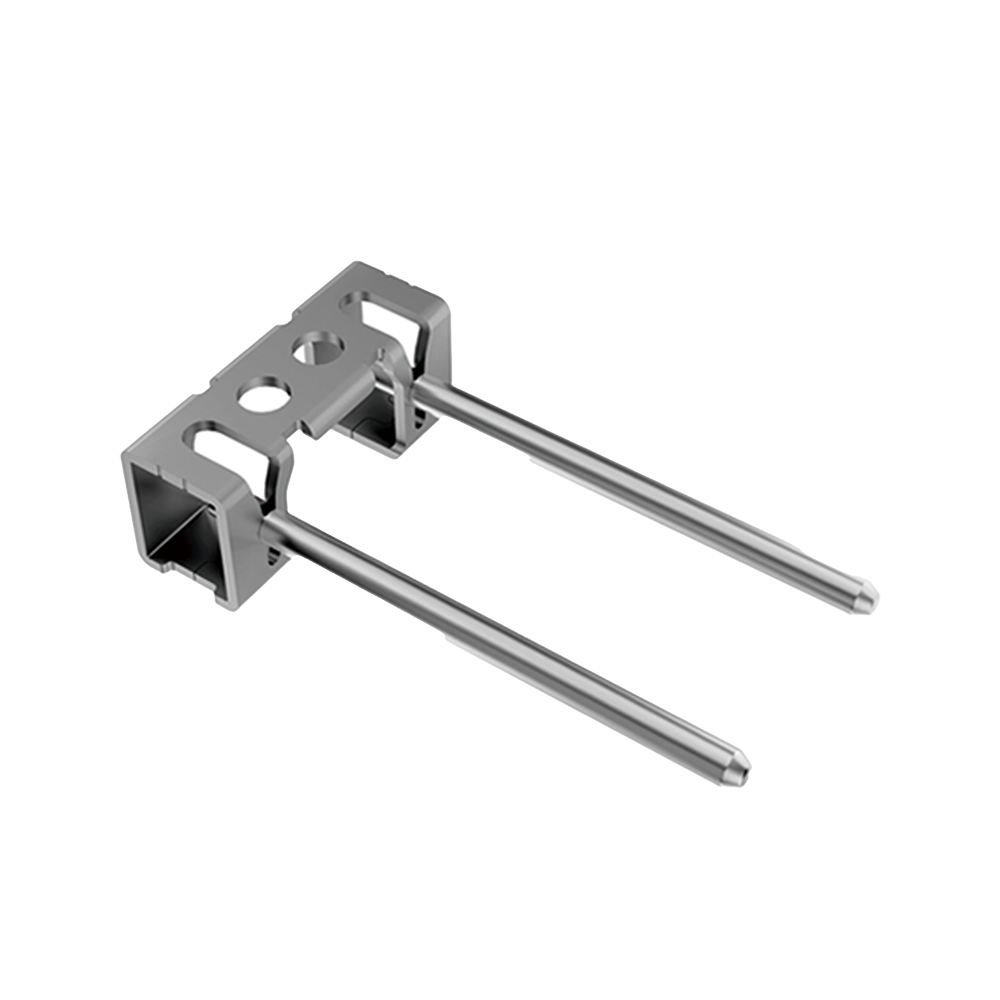

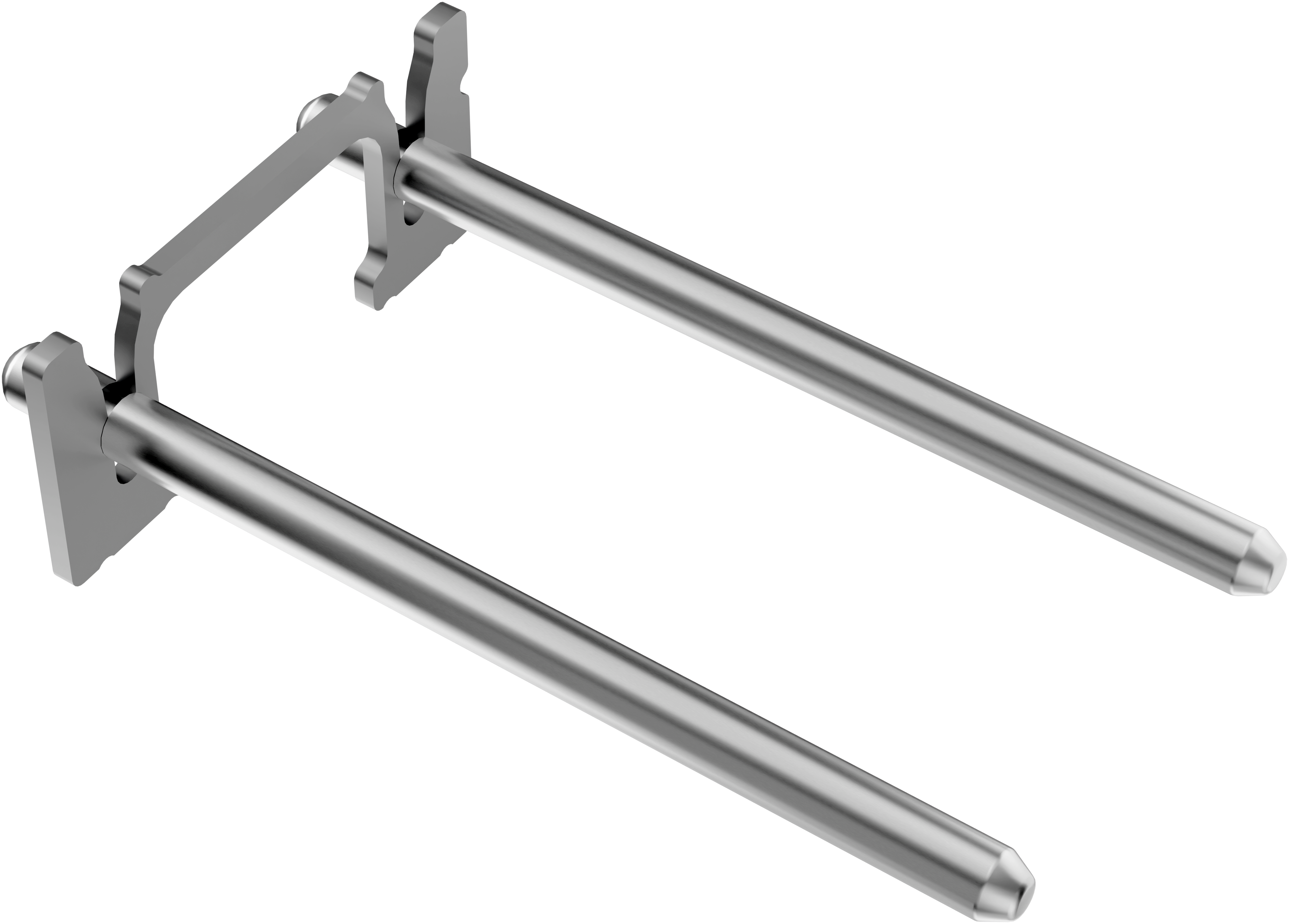

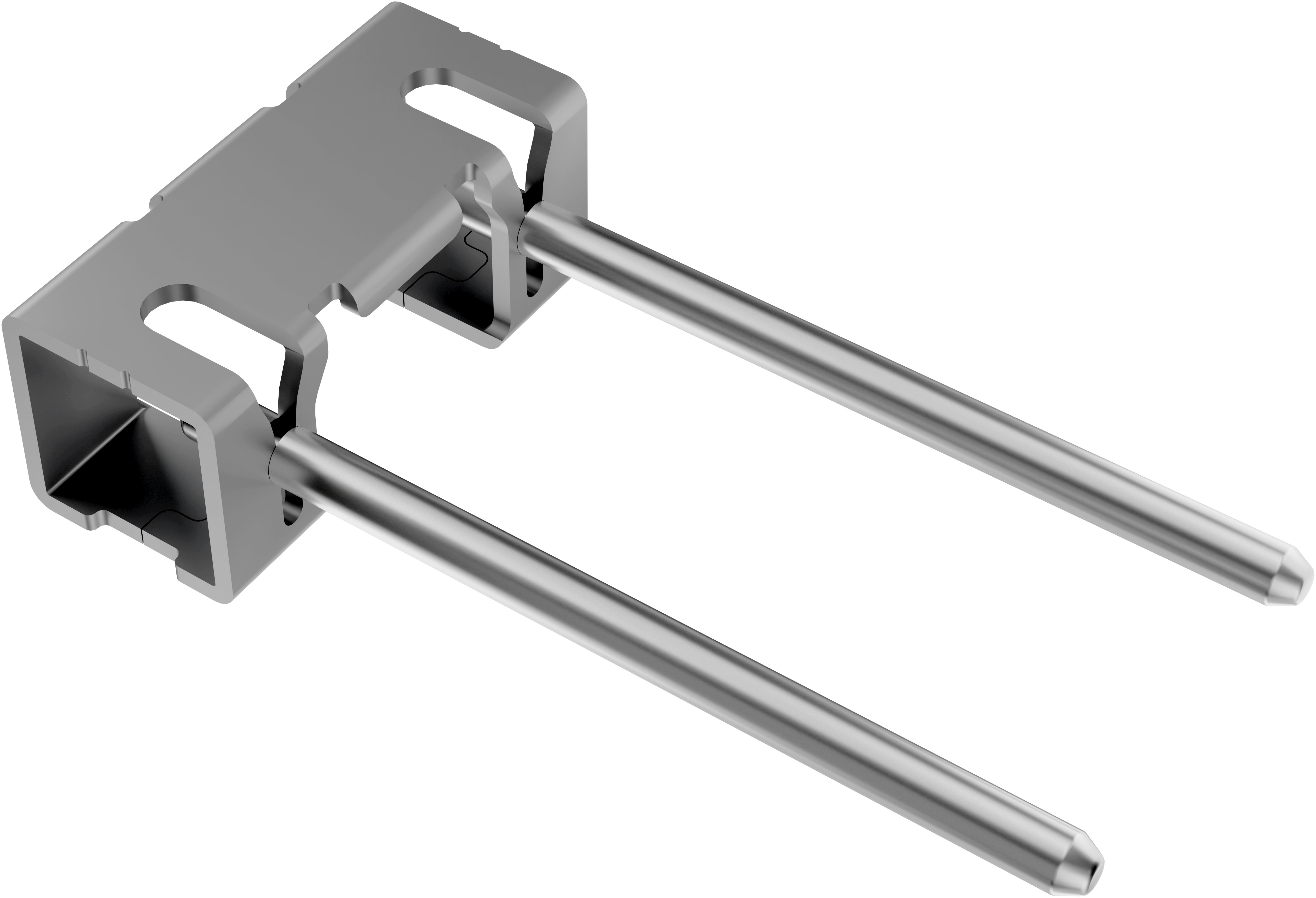

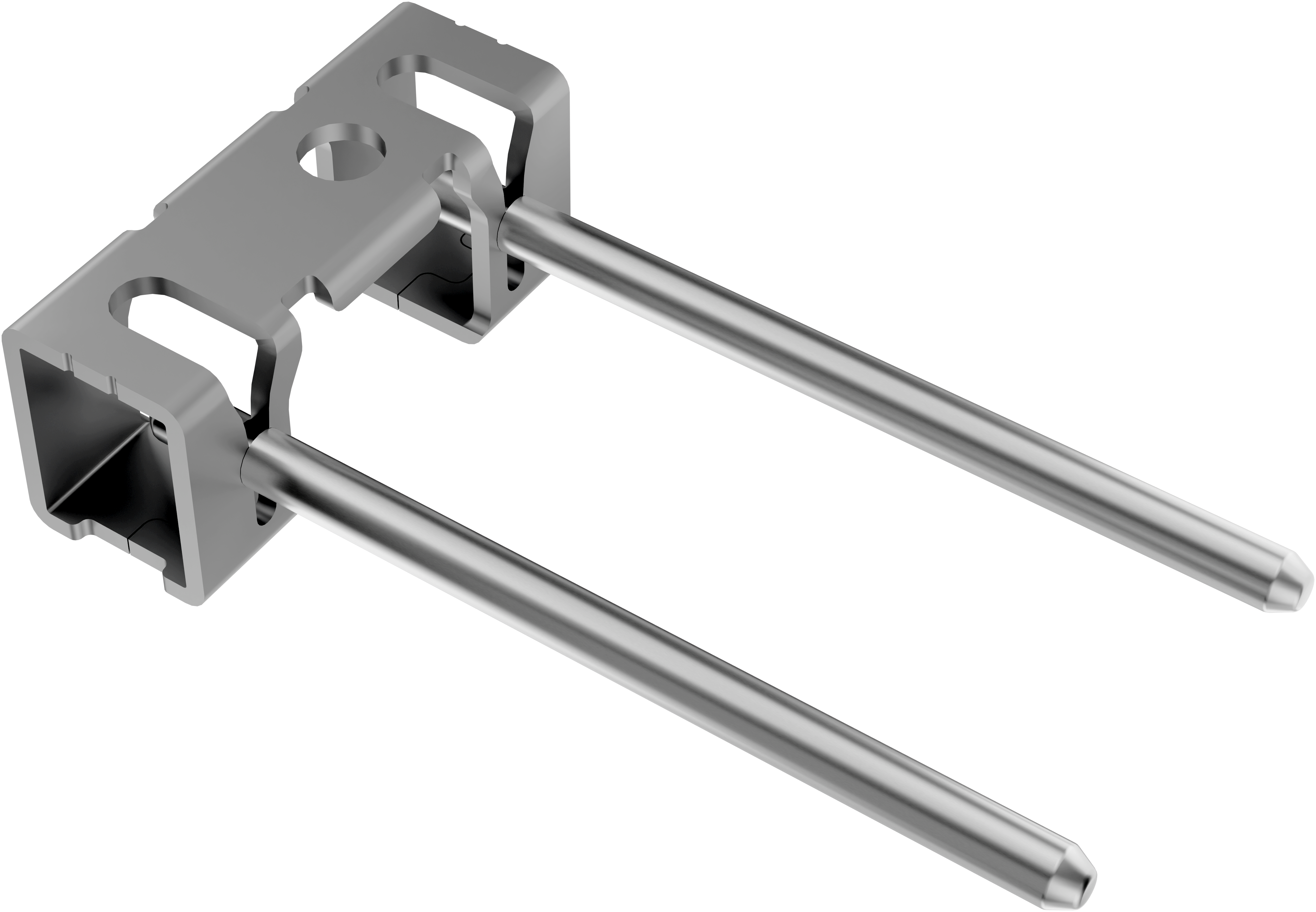

Guide pin
- 1.High precision, precise alignment
- 2.High stability; withstands neutral salt spray for over 168 hours.
- 3.RoHS and REACH compliant
- 4.Complies with GR1435 and IEC61754-7, TIA-604-5, and TIA-604-18 standards
- 5.Complies with YD/T1272.5-2019 design requirements
- 6.Customizable pins with varying precision, length, and slot width, plus pin holders with different structures.
Specifications
| Guide Pin Type | Diameter Accuracy | Base Height |
|---|---|---|
| SM | Ø 0.6985±0.0005mm（12F/24F/36F/48F） Ø 0.6985±0.00025mm（12F/24F/36F/48F） Ø 0.5485±0.0005mm（16F/32F） Ø 0.5485±0.00025mm（16F/32F） | 0.25H / 2.5H / 3.0H |
| SL | Ø 0.5485±0.0001mm（16F/32F） Ø 0.6985±0.0001mm（12F/24F/36F/48F） | 0.25H / 2.5H / 3.0H |

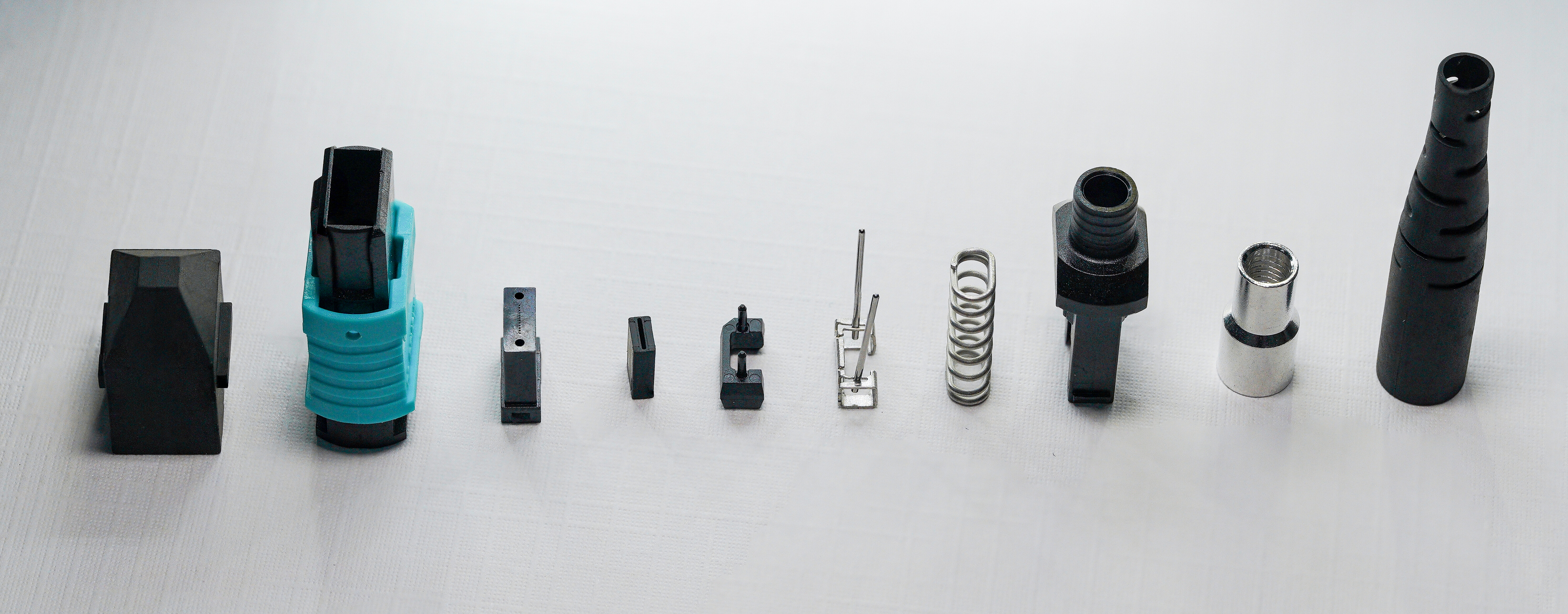

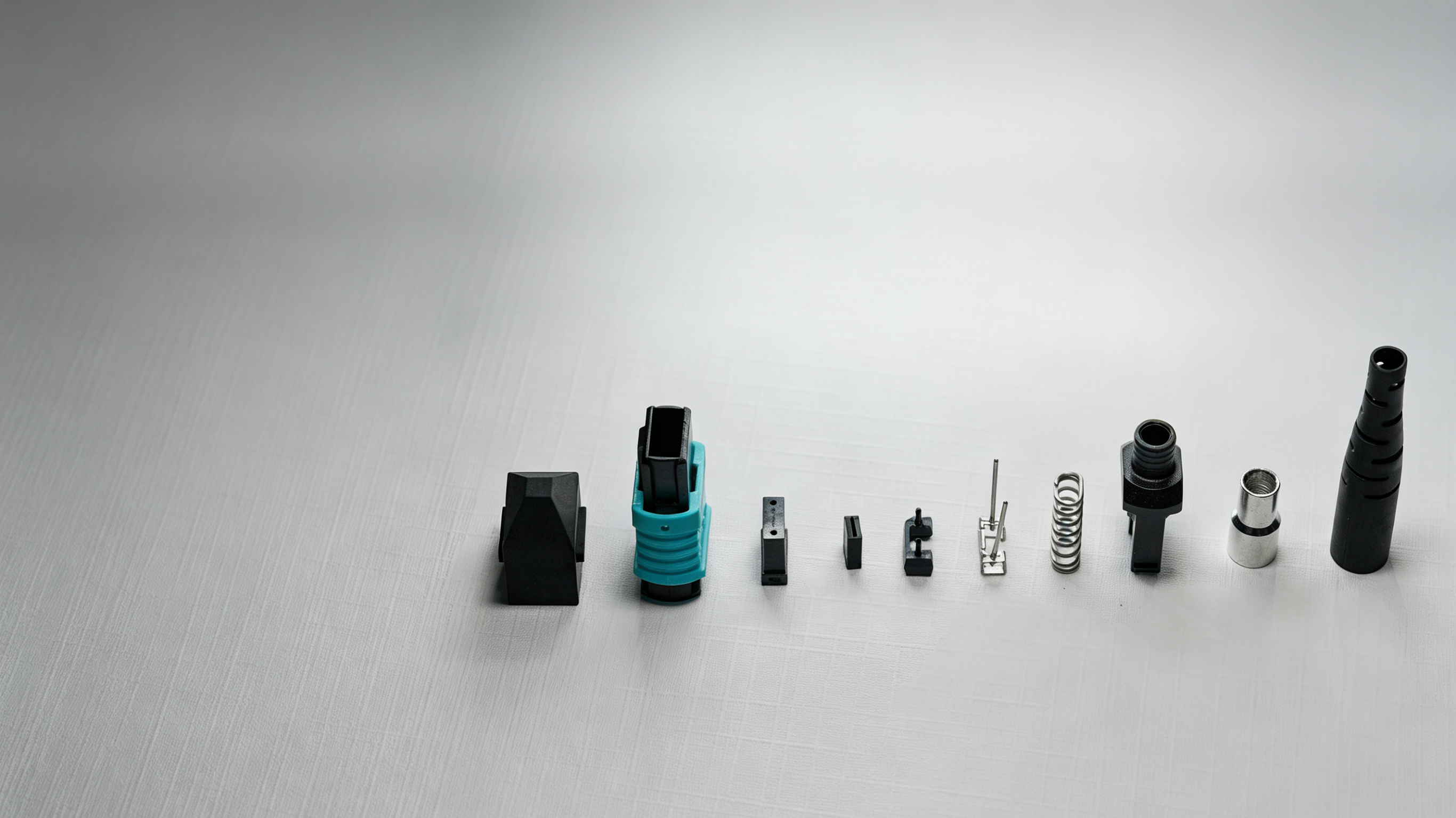

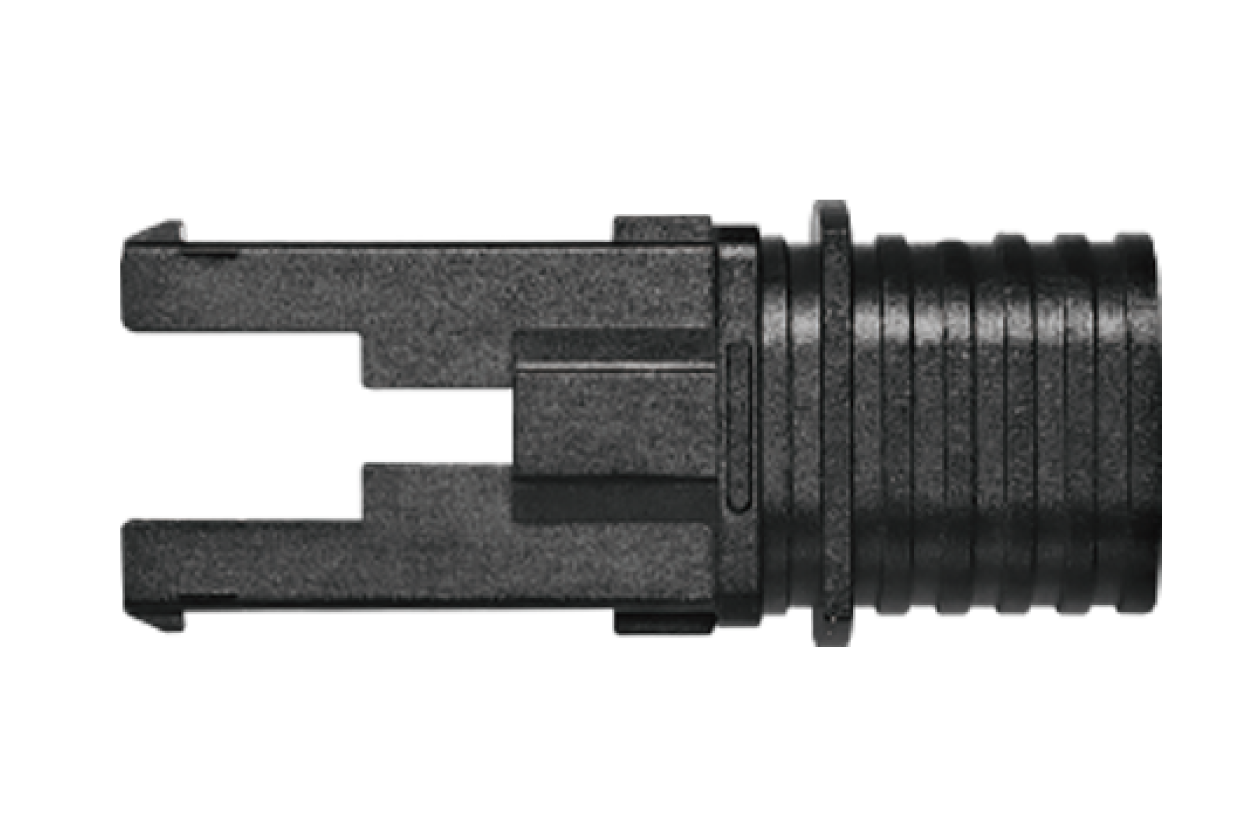

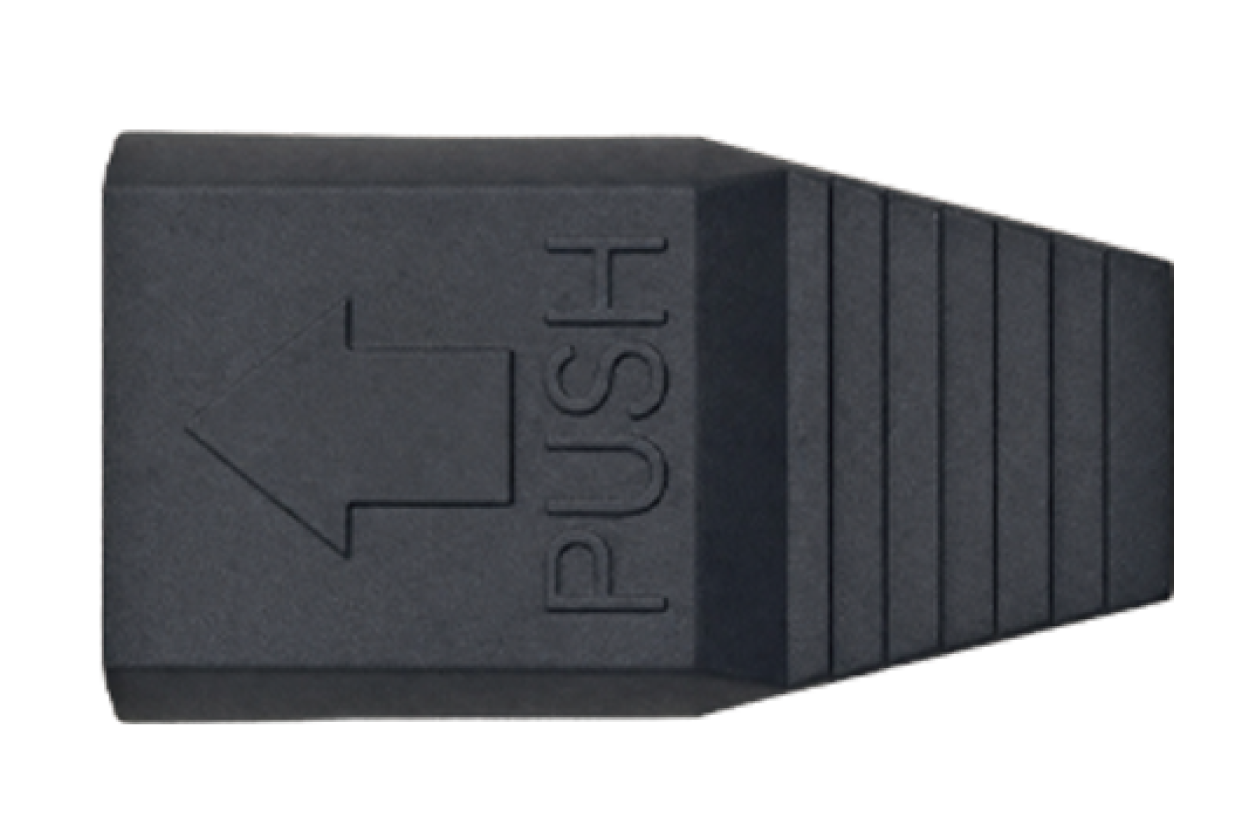

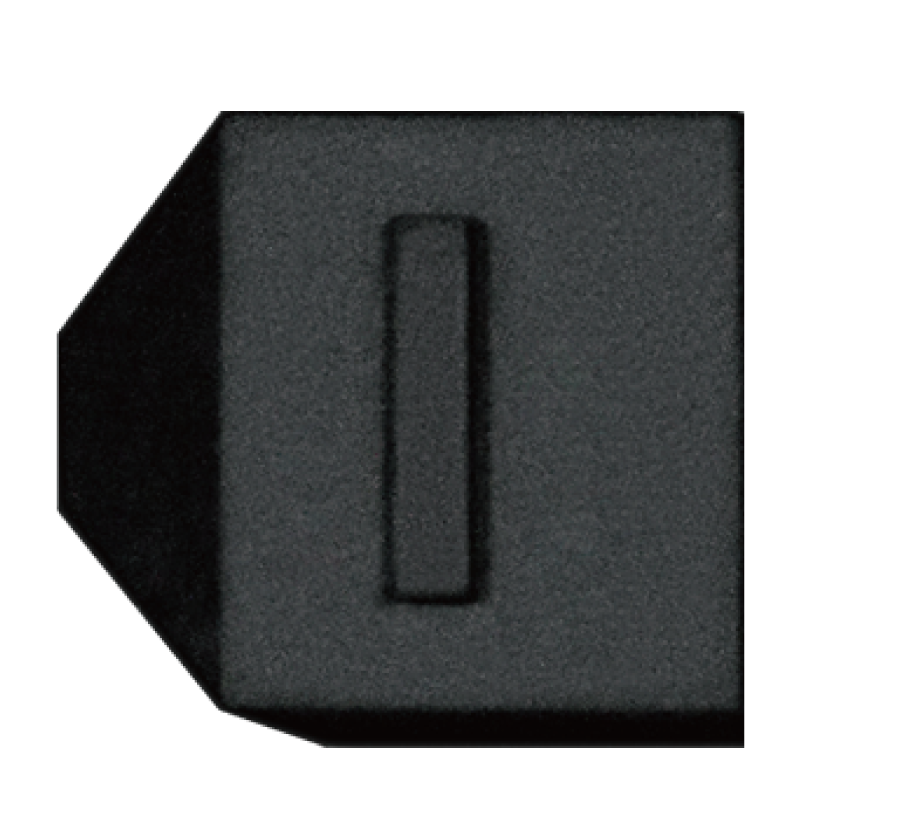

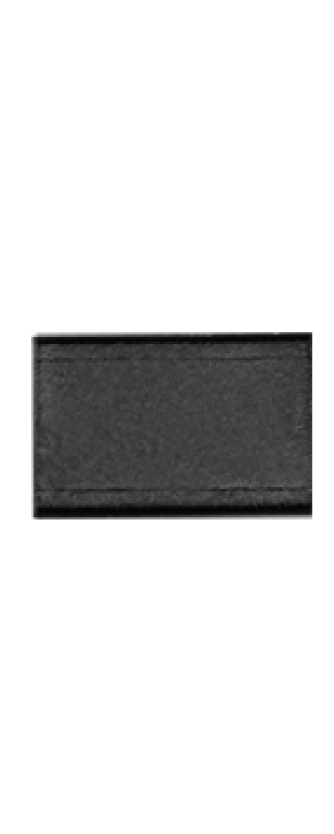

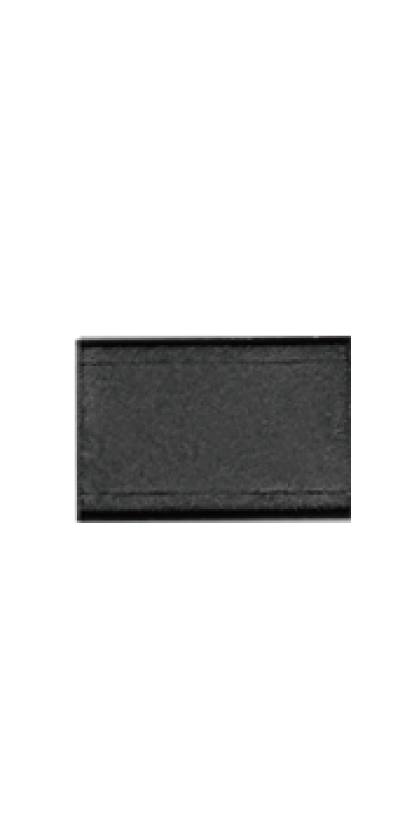

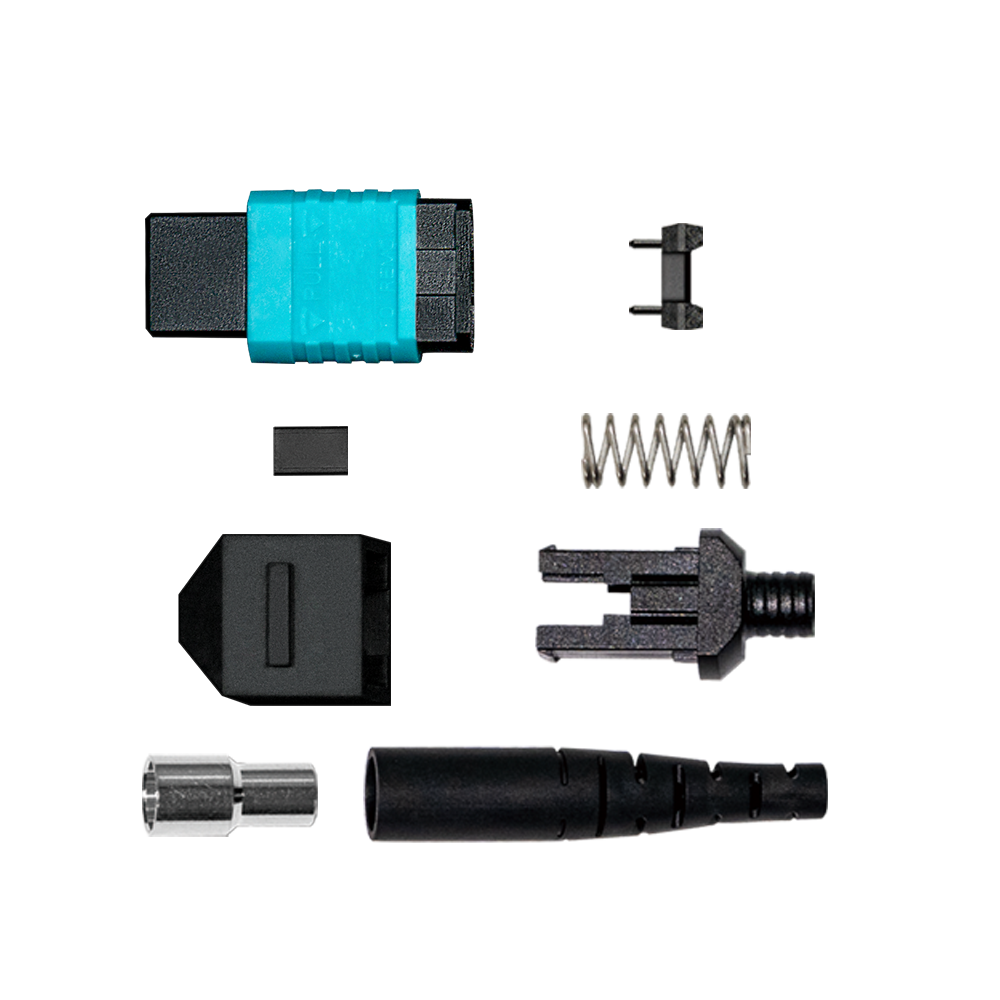

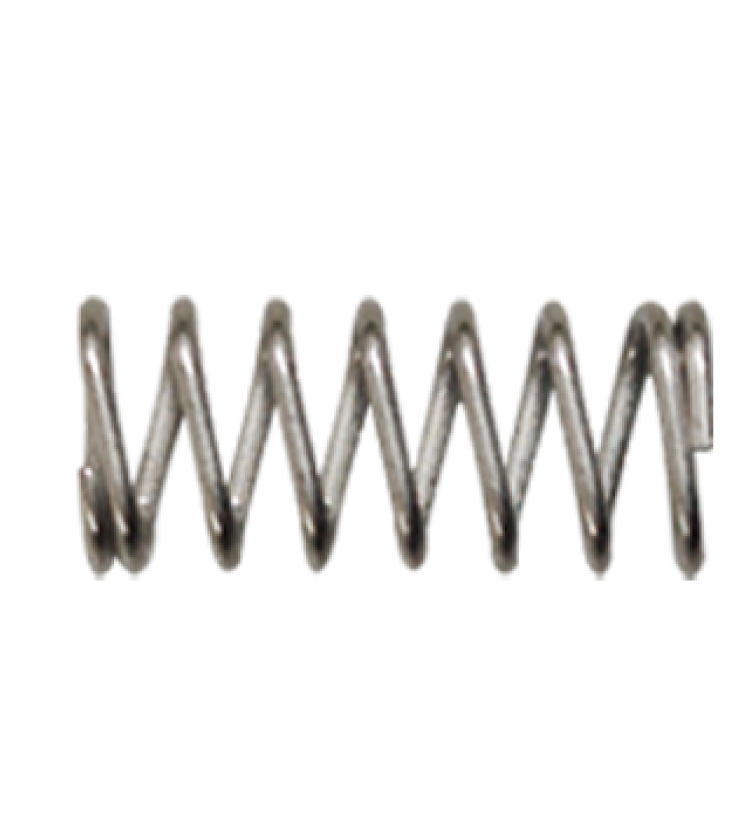

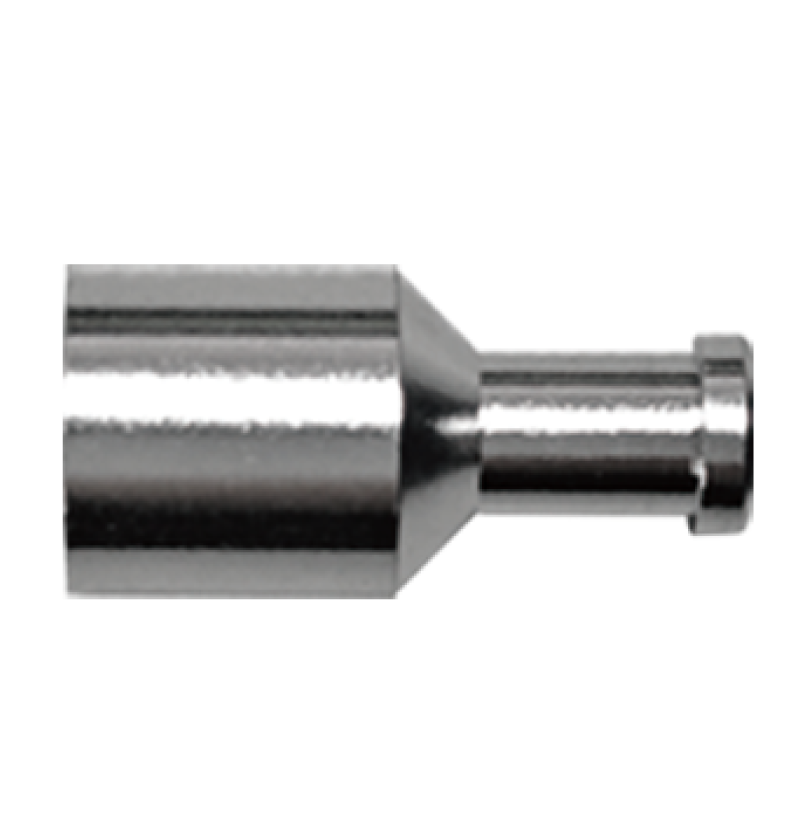

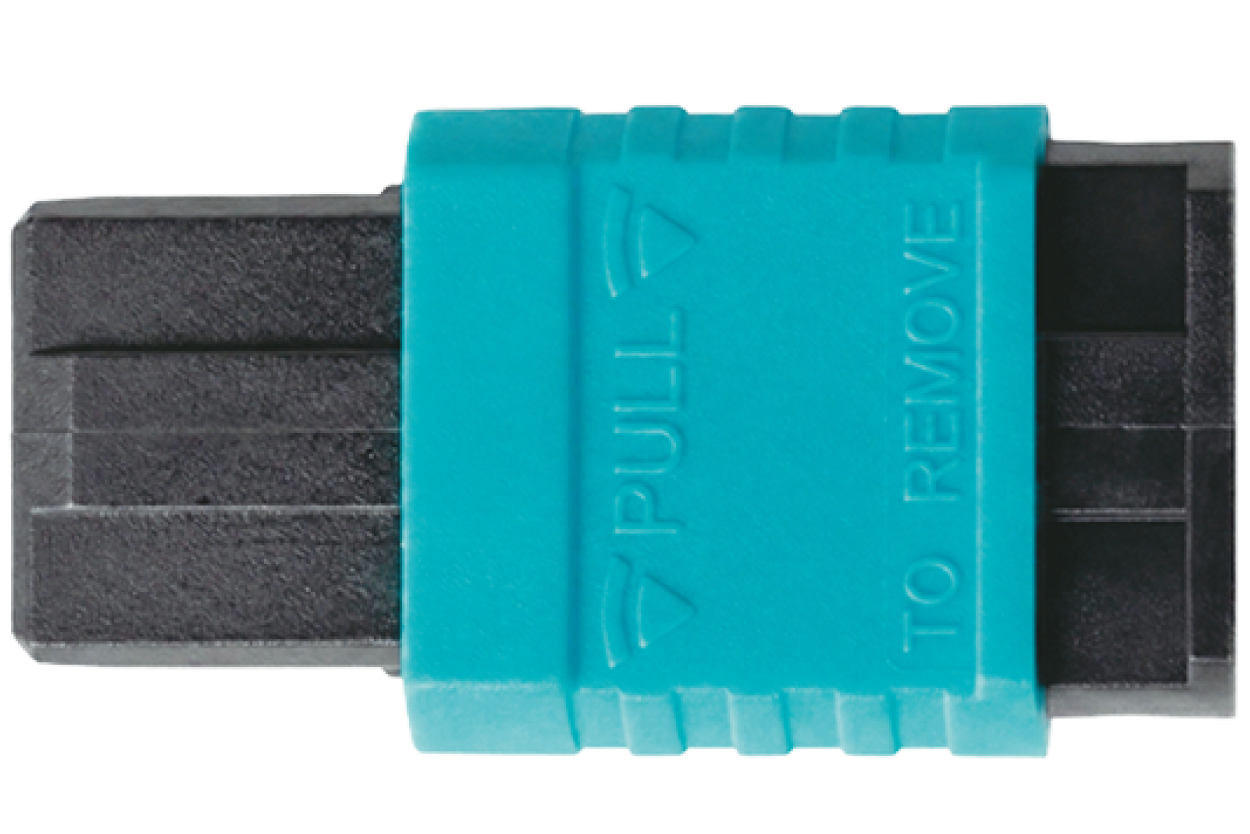

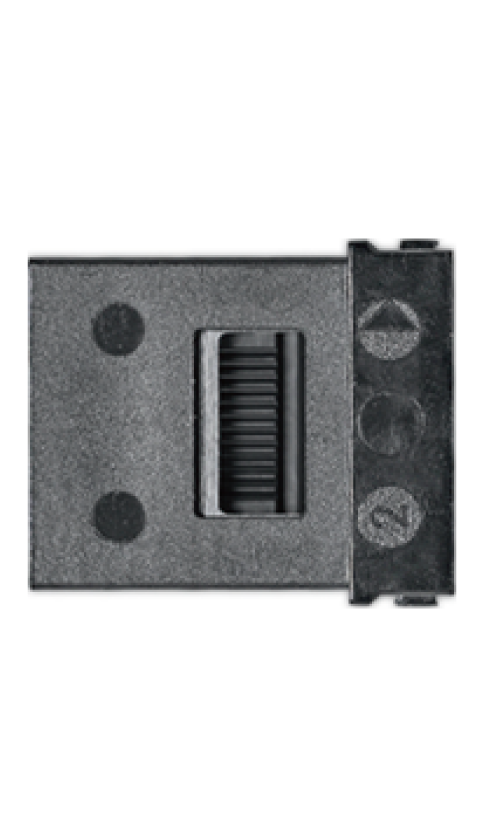

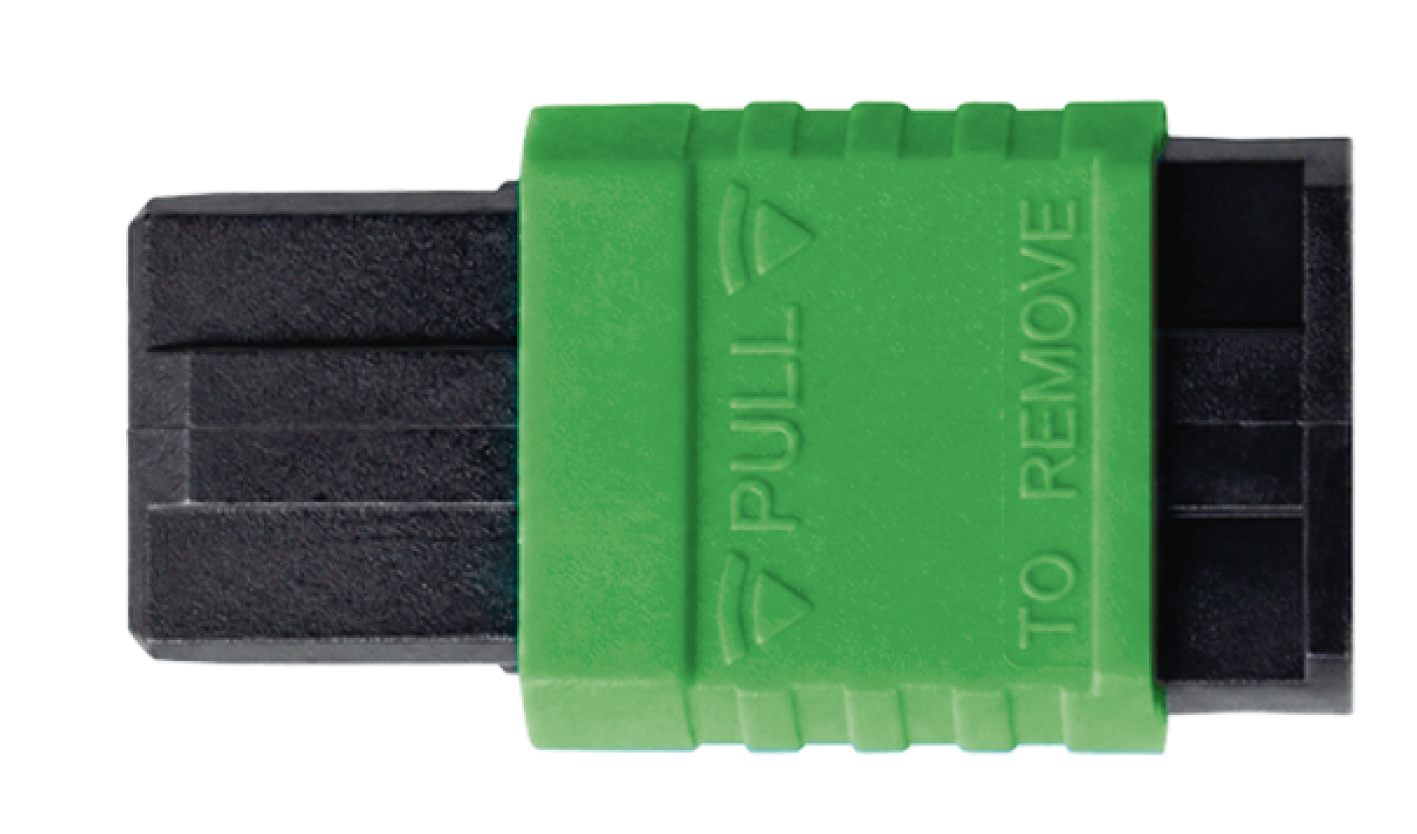

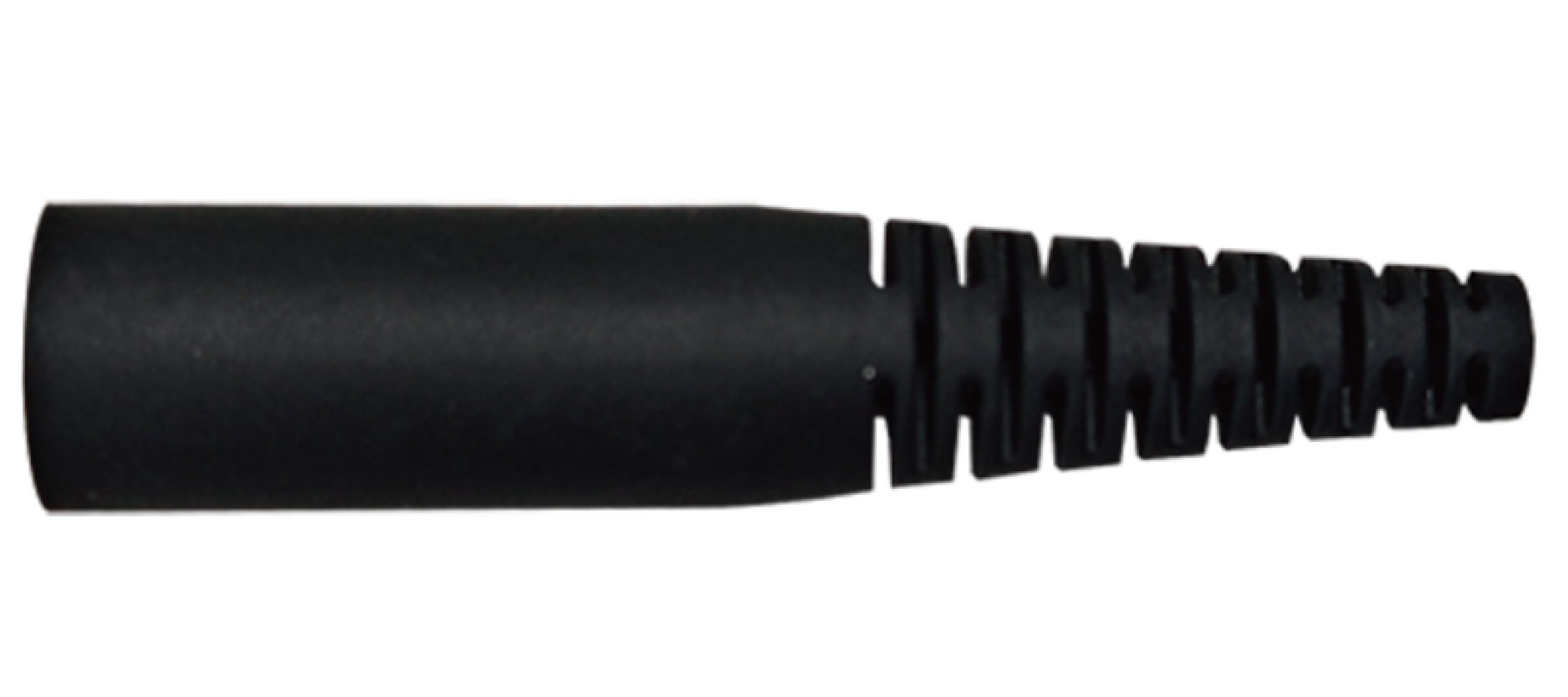

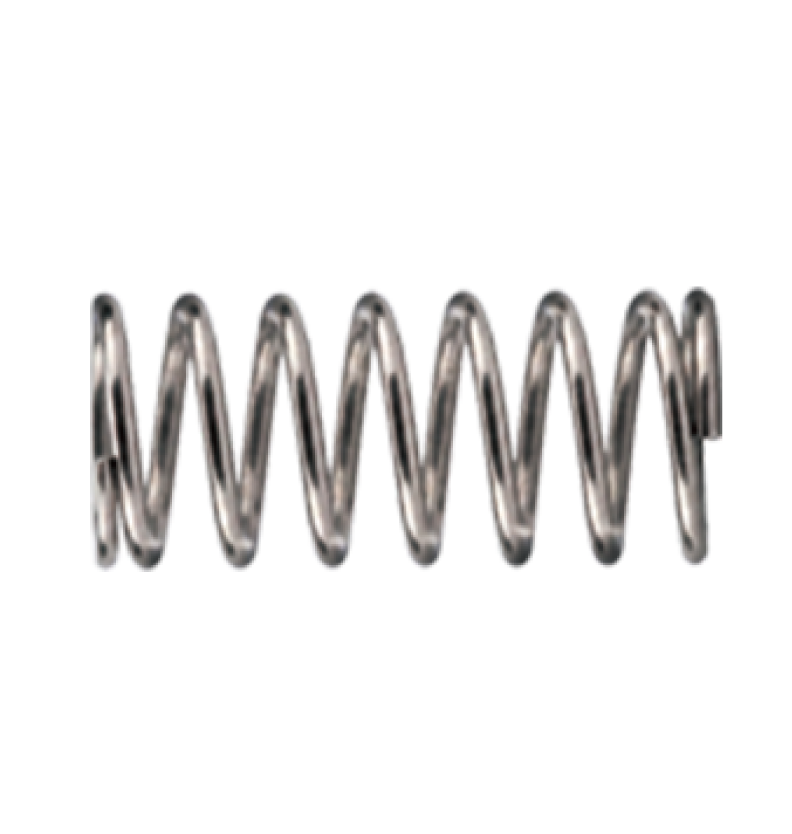

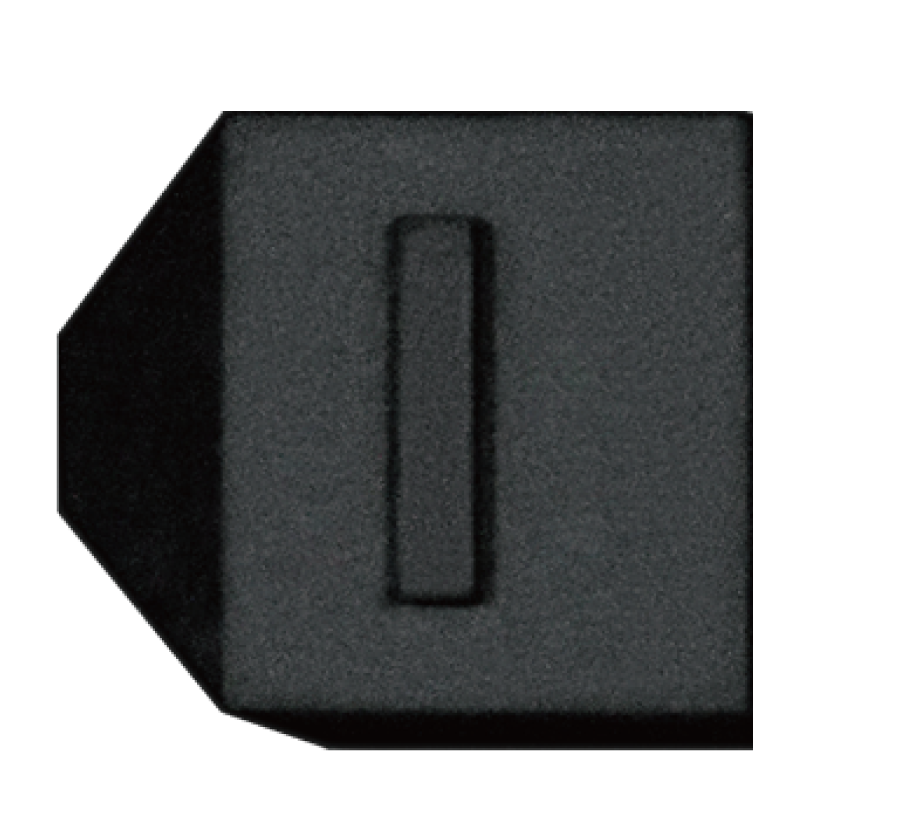

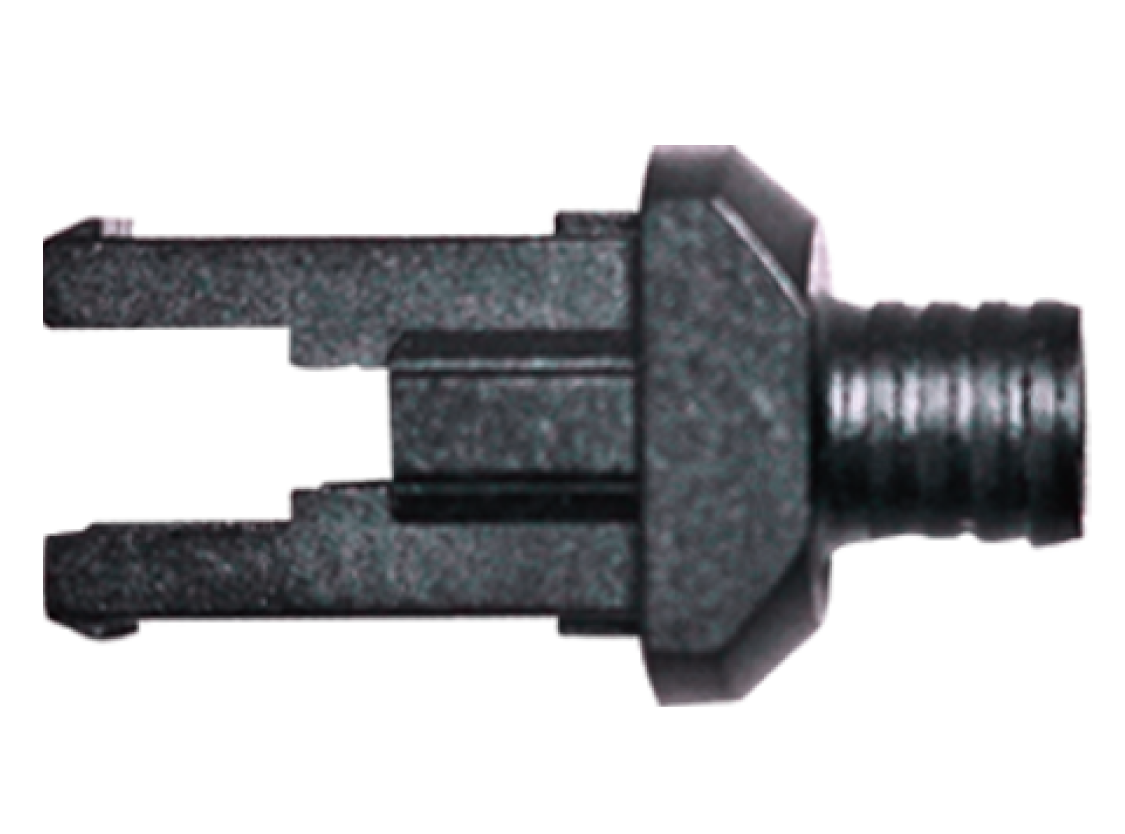

MPO connector components
Customized to meet your specific needs and seamlessly adapted to your use cases.
Housing Color: Customizable for easy device identification and differentiation
Branding: Optional logo printing to maintain brand consistency or keep a clean look.
Cable sleeve length: Adjustable to fit various rack environments and wiring space requirements.
Connector Type: Configurable as male or female to meet upstream and downstream device requirements
MPO Connector Type
